29642-12-12 | WPR, Hose Fitting

Superior Strength WPR Hose Fitting - Model 29642-12-12

Description

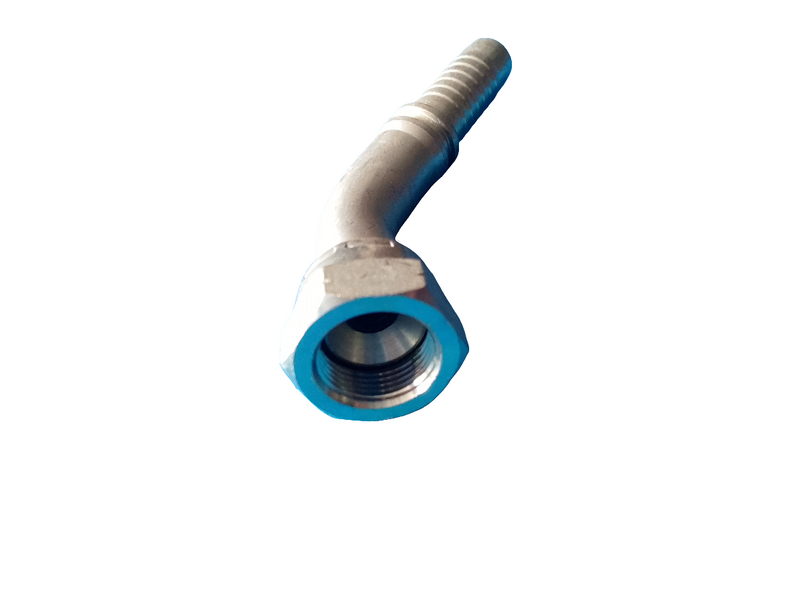

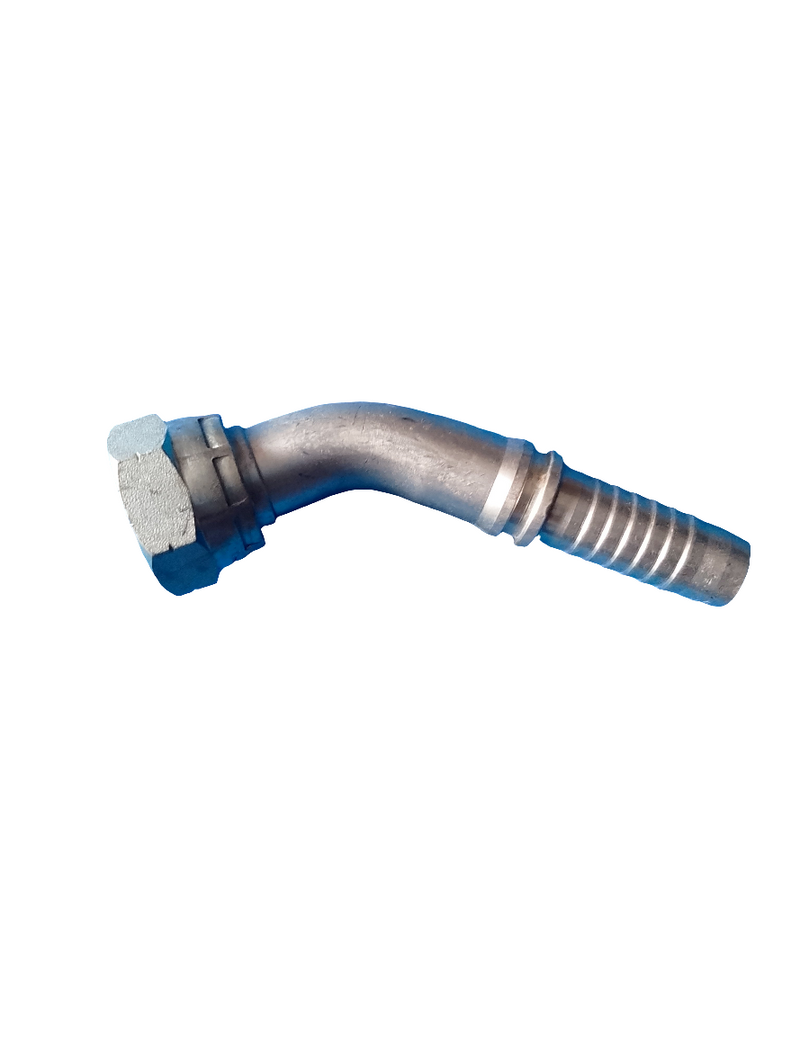

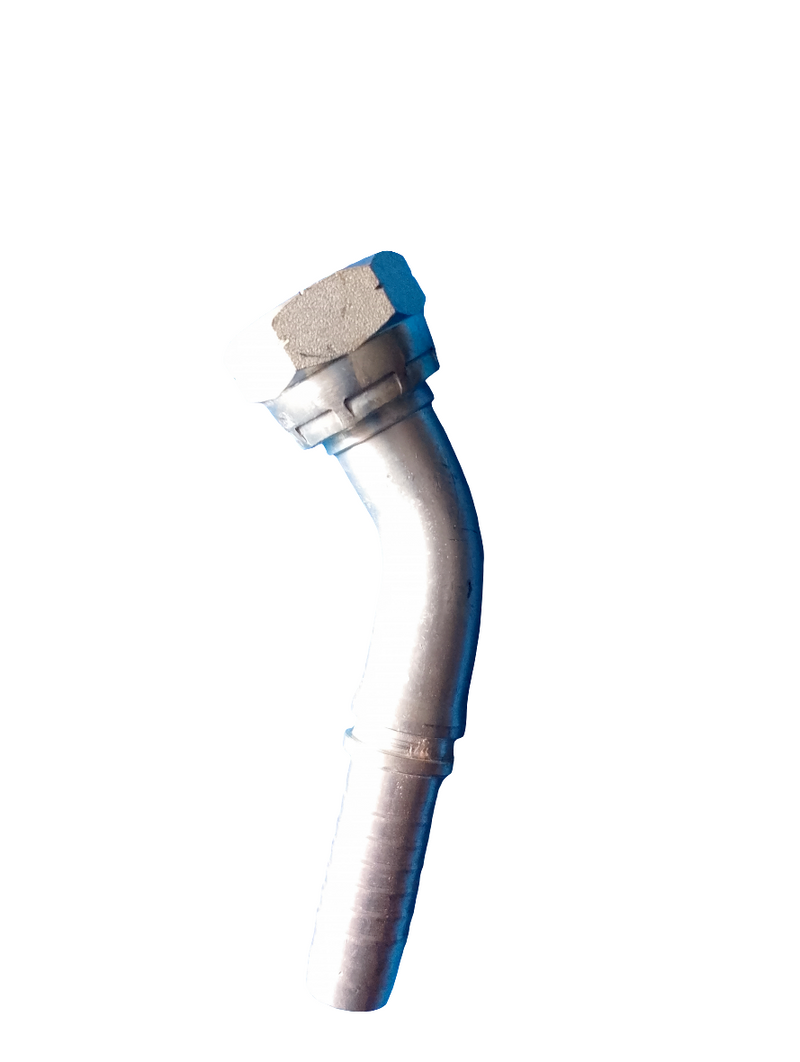

The 29642-12-12 is a hallmark of excellence in the realm of JIS hose fittings, featuring a female configuration with an internal 60-degree cone seat thread and a 45-degree elbow. This fitting is crafted to facilitate connections in both hydraulic and pneumatic systems, abiding by the stringent JIS standards for industrial products. It ensures reliability and leak-tight performance in gas systems and other applications requiring high precision and durability.

Features and Benefits

• Premium Construction: Engineered from top-grade materials to endure high-pressure environments, offering unmatched durability and reliability across various applications.
• Optimal Thread Fit: Boasts a G3/4" ‚àö√≥ 14 thread, ensuring a secure, leak-proof connection that enhances system performance and safety.
• Enhanced Compatibility: With a 20 DN hose bore and a dash size of 12, this fitting provides broad compatibility, making it suitable for diverse hydraulic hoses and applications.
• Efficient Design: Its compact and efficient design allows for ease of installation, even in confined spaces, without sacrificing performance.

Advantages

• Reliable Performance: Delivers a tight, secure fit to minimize potential leaks, thereby enhancing system efficiency and reducing the need for frequent maintenance.
• Versatility: The fitting's design and compatibility with various hose types make it ideal for a wide range of hydraulic applications, from industrial machinery to agricultural equipment.
• Ease of Use: Simplifies the installation process, allowing for quick and straightforward setup and maintenance, saving time and labor costs.

Technical Specifications

• Part No.: 29642-12-12
• Thread E: G3/4" ‚àö√≥ 14
• Hose Bore (DN): 20
• Dash: 12
• Dimensions:
  • A (mm): 81.3
  • C (mm): 13.5
  • H (mm): 33.9
  • S1 (mm): 32
  • S2 (mm): 32

Note

This fitting is designed for use with braided hoses. For applications involving spiral hoses, refer to the 29642 series with the specific part number format 29642-XX-XX to ensure optimal compatibility and performance in your specific setup.
