Name: WPR 87692-12-12 SAE Code 62 Flange 90° Elbow 3/4"
Brand: United Hose & Fittings
SKU: 23261-WPR-HOS-MM
Price: 8546.0 MMK
Availability: OutOfStock

WPR 87692-12-12 SAE Code 62 Flange 90° Elbow 3/4"

20+ sold

WPR 87692-12-12 SAE Code 62 Flange 90° Elbow 3/4"

Part Number / SKU: 23261-WPR-HOS-MM

Brand / Vendor: United Hose & Fittings | Type: Hose Fitting

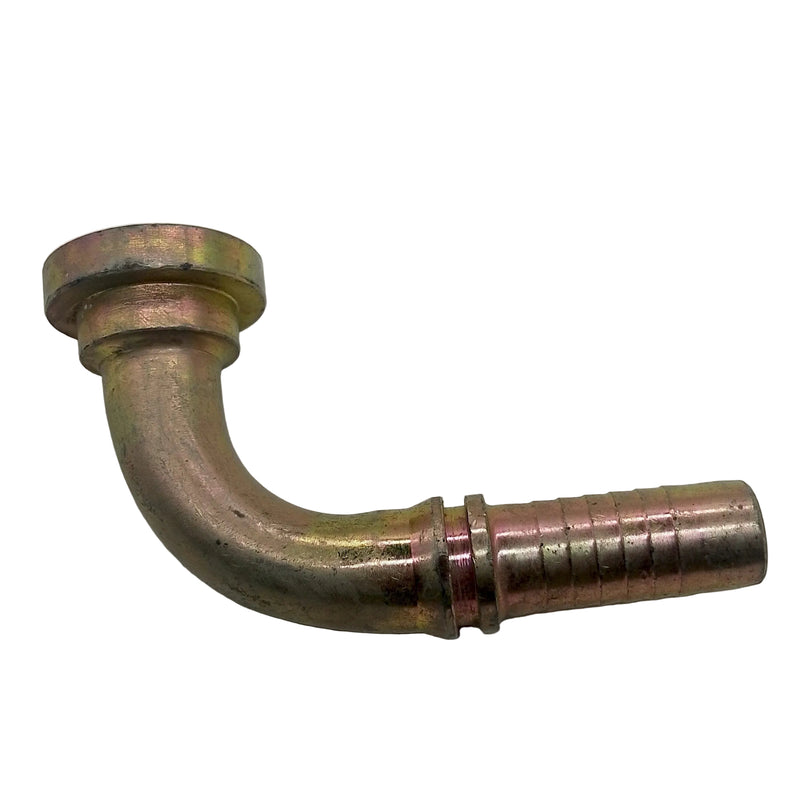

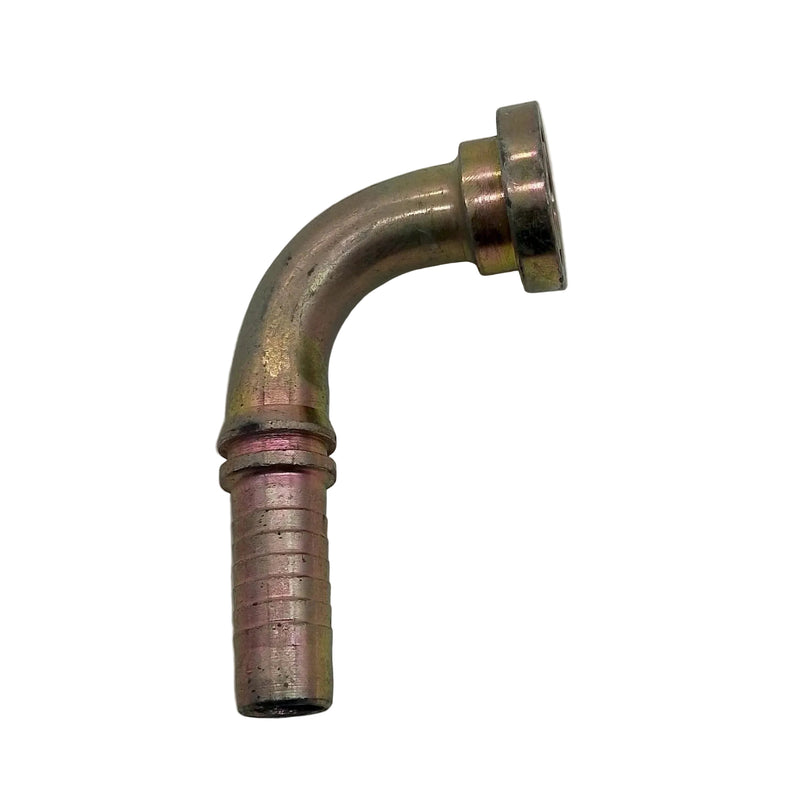

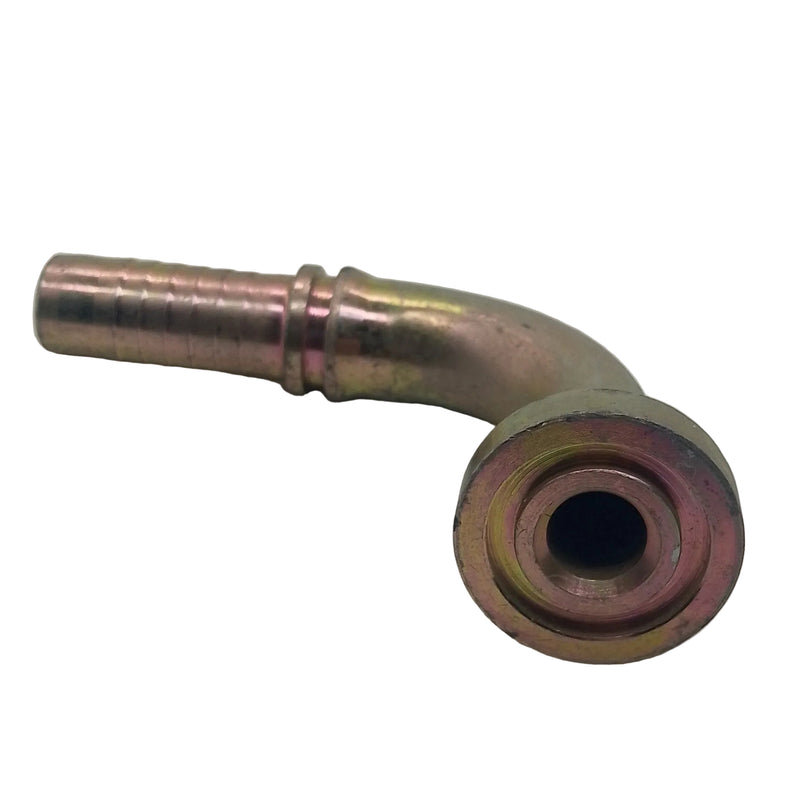

SAE J518 Code 62 split flange 90° elbow fitting. 3/4" hose size, 6,000 PSI rated, O-ring sealed, zinc plated carbon steel. | SAE J518 Code 62 ဖလင်း ၉၀°ကွေးချိတ်ဆက်။ ၃/၄" ပိုက်အရွယ်၊ ၆,၀၀၀ PSI၊ O-ring ဆီးလ်၊ ဇင့်ချယ်သံမဏိ။

Sold out

K8,546.00 - K8,546.00

K8,546.00

K8,546.00 - K8,546.00

K8,546.00

Availability:

In stock

Currently out of stock. Please submit a request to our support team to check availability.

Contact Support

14-Day Return Policy

Items can be returned within 14 days from the delivery date.

Conditions:
• Product must be unused
• Original packaging required
• Proof of purchase required

Key item features

Myanmar name: SAE ဖလင်း Code 62 ၉၀°
English name: 87692 Hose Fitting
Brand: WPR
Sku: 23261-WPR-HOS-MM
Part number: 87692-12-12
Part type: Hydraulic Fitting
Product type: Hydraulic Fitting

Specs

Part number / SKU	23261-WPR-HOS-MM
Brand	United Hose & Fittings
Product Type	Hose Fitting

How you will get this item

Nationwide delivery, usually 2–4 days depending on location. Free shipping over K500,000

Free pickup at Win Store locations — usually ready in 2 hours.

Fast home delivery within Yangon after confirmation.

🏬Sold and shipped by Win Store

↩️Return policy Details

About this item

Product details⌄

WPR Hose Fitting (004497)

Introducing the WPR Hose Fitting (004497), a durable and reliable solution for all your hose connection needs. This fitting, model number 87692-12-12, is designed to provide a secure and leak-free connection between hoses, ensuring optimal performance and functionality.

Key Features:

High Quality Construction: Made from premium materials, this hose fitting offers exceptional strength and durability, ensuring long-lasting performance even in demanding conditions.
Secure Connection: The WPR Hose Fitting (004497) features a secure connection mechanism that prevents leaks and ensures a tight fit, eliminating the risk of downtime or damage.
Easy Installation: With its user-friendly design, this fitting can be easily installed without the need for specialized tools or expertise. Simply connect it to your hoses and enjoy hassle-free operation.
Versatile Compatibility: Compatible with a wide range of hoses, this fitting is suitable for various applications, including industrial, automotive, and residential use. It offers versatility and adaptability to meet your specific needs.
Reliable Performance: The WPR Hose Fitting (004497) is designed to withstand high pressure and temperature conditions, ensuring reliable performance even in challenging environments. You can trust it to deliver consistent results.

Enhance Your Hose Connections

Upgrade your hose connections with the WPR Hose Fitting (004497). Whether you need to connect hoses for irrigation, plumbing, or any other application, this fitting offers a reliable and efficient solution. With its durable construction, secure connection, and versatile compatibility, it provides peace of mind and superior performance.

Don't settle for subpar hose fittings that may cause leaks or compromise the integrity of your system. Invest in the WPR Hose Fitting (004497) and experience the difference it can make in your hose connections.

Specifications⌄

Part number / SKU	23261-WPR-HOS-MM
Brand	United Hose & Fittings
Product Type	Hose Fitting
Material	Carbon steel and Stainless steel
Availability	⏳ Out of Stock

Warranty⌄

Return Policy
• Items can be returned within 14 days from the delivery date.
• Products must be unused and in original packaging.
• Proof of purchase (order confirmation or invoice) is required.

Non-Returnable Items
• Used or installed products
• Items damaged due to improper handling
• Products modified after purchase

Warranty
• Warranty coverage may vary depending on the manufacturer or supplier.
• If a product includes manufacturer warranty, claims must follow supplier terms.

See full delivery and return policy in our Help Center

📊 Technical Data နည်းပညာ အချက်အလက်များ Click sections to expand

✨ Key Features | အဓိက အင်္ဂါရပ်များ ▼

Myanmar name: SAE ဖလင်း Code 62 ၉၀°
English name: 87692 Hose Fitting
Brand: WPR
Sku: 23261-WPR-HOS-MM
Part number: 87692-12-12
Part type: Hydraulic Fitting
Product type: Hydraulic Fitting
Short description: SAE J518 Code 62 split flange 90° elbow fitting. 3/4" hose size, 6,000 PSI rated, O-ring sealed, zinc plated carbon steel. | SAE J518 Code 62 ဖလင်း ၉၀°ကွေးချိတ်ဆက်။ ၃/၄" ပိုက်အရွယ်၊ ၆,၀၀၀ PSI၊ O-ring ဆီးလ်၊ ဇင့်ချယ်သံမဏိ။
Specifications: {"part_number"=>"87692-12-12", "series"=>"87692", "thread"=>"SAE Flange -12", "hose_size"=>"3/4\"", "angle"=>"90°", "connection"=>"Split Flange", "seal"=>"O-Ring (NBR)", "material"=>"Carbon Steel", "finish"=>"Zinc Plated", "working_pressure"=>"6,000 PSI (420 bar)", "burst_pressure"=>"24,000 PSI (1,680 bar)", "temp_range"=>"-40°C to +100°C", "standard"=>"SAE J518 / ISO 6162-2", "country"=>"China"}
Materials: {"body"=>"Carbon Steel", "finish"=>"Zinc Plated", "seal"=>"O-Ring (NBR)"}
Material details: Body: Carbon Steel | ကိုယ်ထည်: ကာဗွန်သံမဏိ Finish: Zinc Plated | အပြင်ပိုင်း: ဇင့်ချယ် Seal: O-Ring (NBR) | ဆီးလ်: O-Ring (NBR)

🔩 Part Identification | အစိတ်အပိုင်းနံပါတ် ▼

Description	Detail
Brand \| အမှတ်တံဆိပ်	WPR
Product Type \| ကုန်ပစ္စည်းအမျိုးအစား	Hydraulic Fitting

🚗 Vehicle Compatibility | ကားပုံစံ ကိုက်ညီမှု 134 ▼

Make	Model	Year	Engine
—	—	—	—

🏷️ OEM Part Numbers | OEM အစိတ်အပိုင်းနံပါတ် 11 ▼

Part Number	Brand	Type
—	—	—

🔄 Cross Reference Parts | ညီမျှမှုနံပါတ်များ 122 ▼

These parts are cross-compatible — same specification, different brands. | ဤနံပါတ်များသည် ညီမျှသောအစိတ်အပိုင်းများ — ကုမ္ပဏီကွာသော်လည်း Spec တူညီသည်။

Part Number	Brand	Type
—	—	—

🔧 Sub Assembly | အပိုဆောင်အစိတ်အပိုင်းများ 84 ▼

Component	Qty	Note
—	1	—

📋 Product Specifications | ကုန်ပစ္စည်းသတ်မှတ်ချက်▼

Specification	Value

📖 Installation Guide | တပ်ဆင်နည်းလမ်းညွှန် ▼

1. Clean all connection surfaces thoroughly before assembly | တပ်ဆင်မှုမတိုင်မီ ချိတ်ဆက်မျက်နှာပြင်အားလုံးကို သေချာသန့်ရှင်းပါ
2. Apply appropriate thread sealant or ensure O-ring/seal is properly seated | သင့်လျော်သော ကြိုးအံအလုံပိတ်ဆေး သို့မဟုတ် O-ring/seal ကို မှန်ကန်စွာထိုင်ကြောင်း သေချာပါ
3. Hand-tighten first, then use correct wrench size to torque to specification | လက်ဖြင့်ဦးစွာတင်းပြီး မှန်ကန်သော wrench အရွယ်အစားဖြင့် သတ်မှတ်ချက်အတိုင်း torque ပေးပါ
4. Check for leaks under system pressure before full operation | အပြည့်အဝလည်ပတ်မှုမတိုင်မီ စနစ်ဖိအားအောက်တွင် ယိုစိမ့်မှုစစ်ဆေးပါ
5. Do not exceed rated working pressure | သတ်မှတ်ထားသော လုပ်ငန်းဖိအားကို ကျော်လွန်မပါနှင့်

ℹ️ Product Details | ကုန်ပစ္စည်းအသေးစိတ် ▼

Description	Detail
Material \| ကုန်ကြမ်း	Body: Carbon Steel \| ကိုယ်ထည်: ကာဗွန်သံမဏိ Finish: Zinc Plated \| အပြင်ပိုင်း: ဇင့်ချယ် Seal: O-Ring (NBR) \| ဆီးလ်: O-Ring (NBR)
Country of Origin \| ထုတ်လုပ်သည့်နိုင်ငံ	China

🚚 Shipping & Delivery | ပို့ဆောင်မှု အချက်အလက် ▼

🕐

Delivery Time | ပို့ဆောင်ချိန်

Standard Delivery, 2–4 business days | ပုံမှန်ပို့ဆောင်မှု ၂ ရက်မှ ၄ ရက်အတွင်း

🏪

Store Pickup | ဆိုင်တွင်လာယူ

Pickup Available

❓ Can't find your vehicle or part? Contact our team — ကူညီဖို့ ဆက်သွယ်ပါ
