30441-20-06 | WPR, Hose Fitting (011558)
High-Efficiency WPR Hose Fitting - Model 30441-20-06

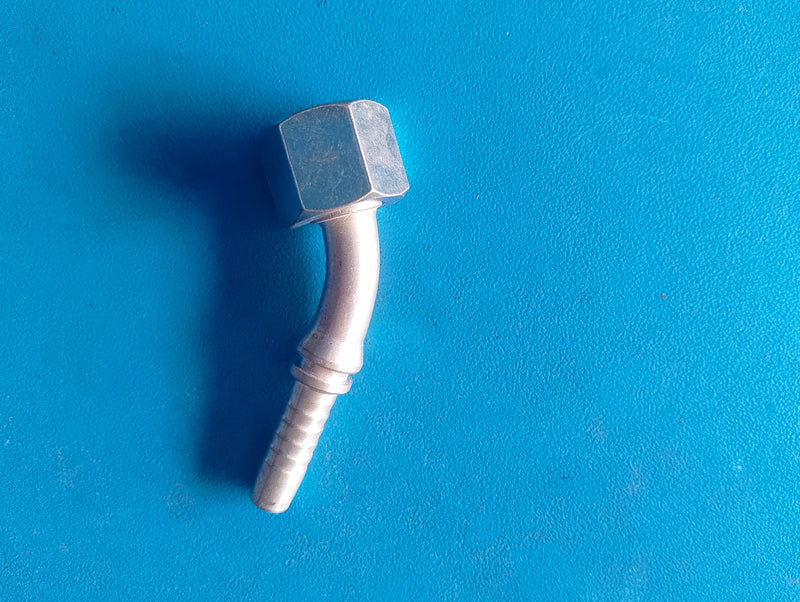

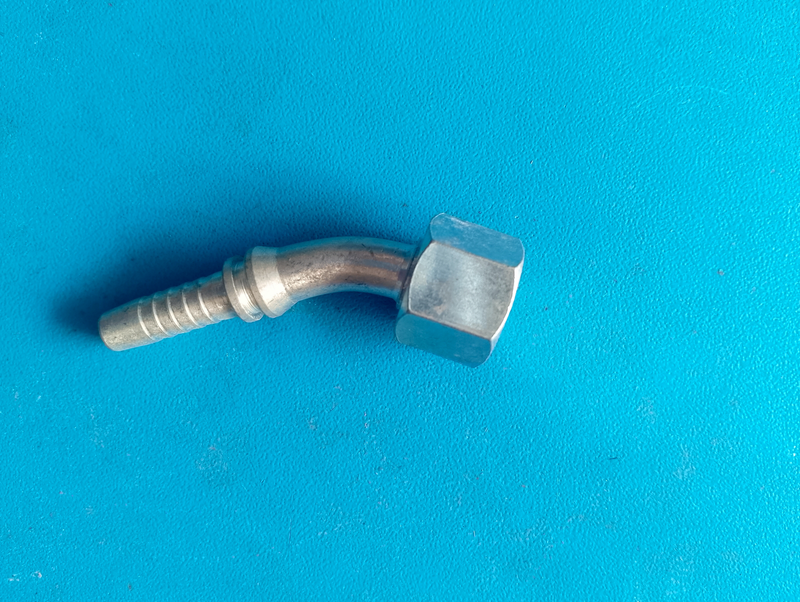

The Model 30441-20-06 is a leading-edge WPR Hose Fitting crafted for optimal performance in hydraulic systems. This precision-engineered fitting, with an M20*1.5 thread, ensures a secure, leak-proof connection for hoses with a bore size of 10 (DN) and a dash size of 06. It stands out for its robust construction and ease of installation, making it an ideal choice for a wide range of hydraulic applications.
Key Features:
-
Precision Engineering: Utilizes an M20*1.5 thread for flawless integration and a tight, leak-free seal.
-
Durable Construction: Made from premium materials to withstand rigorous demands, ensuring durability and longevity.
-
Versatile Compatibility: Compatible with a broad spectrum of hydraulic hoses for diverse applications.
-
Easy Installation: Designed for effortless and swift installation, enhancing operational efficiency.
Benefits:
-
Enhanced System Performance: Guarantees reliable functioning and boosts the efficiency of hydraulic systems.
-
Durability: High-quality construction offers resistance to wear and corrosion, extending the fitting's lifespan.
-
Cost-Efficiency: Minimizes the necessity for frequent replacements and maintenance, saving costs over time.
-
Safety: Ensures a safe and secure connection, significantly reducing the risk of leaks.
Specifications:
-
Part Number: 30441-20-06
-
Thread Size: M20*1.5
-
Hose Bore (DN): 10
-
Dash Size: 06
-
Material: Superior metal alloy for unmatched strength and durability.
Additional Information:

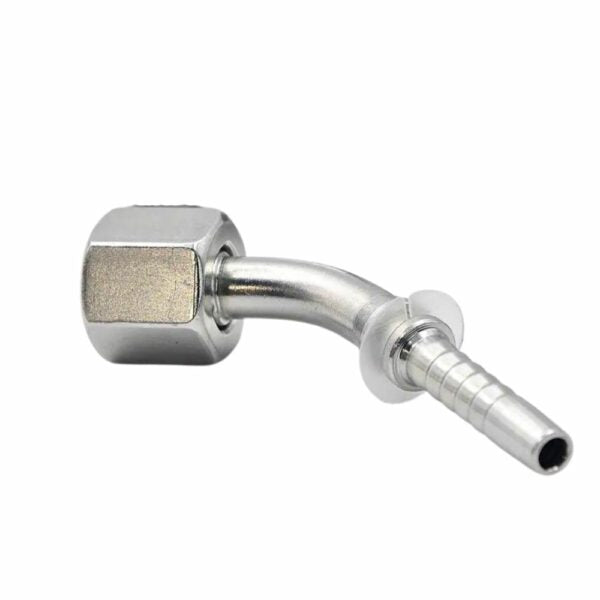

The 20441 model, a 45-degree female metric fitting with a 24-degree cone L.T. seal, offers a reliable sealing method for hydraulic systems. Its design, featuring a female metric thread and an O-ring seal, is ideal for medium to high-pressure environments, ensuring a secure connection between hoses and tubes.
Features and Benefits:
-
Leak-Free Performance: Ensures a secure seal to prevent fluid leaks.
-
Reliability: Provides dependable performance in various hydraulic applications.
-
Maintenance Simplicity: Designed for ease of maintenance and customization to meet specific requirements.
For any inquiries regarding hydraulic metric flare fittings, feel free to reach out. This fitting, adhering to the DIN3865 standard, exemplifies efficiency and reliability in hydraulic systems.
Metric Hose Fitting
Description:

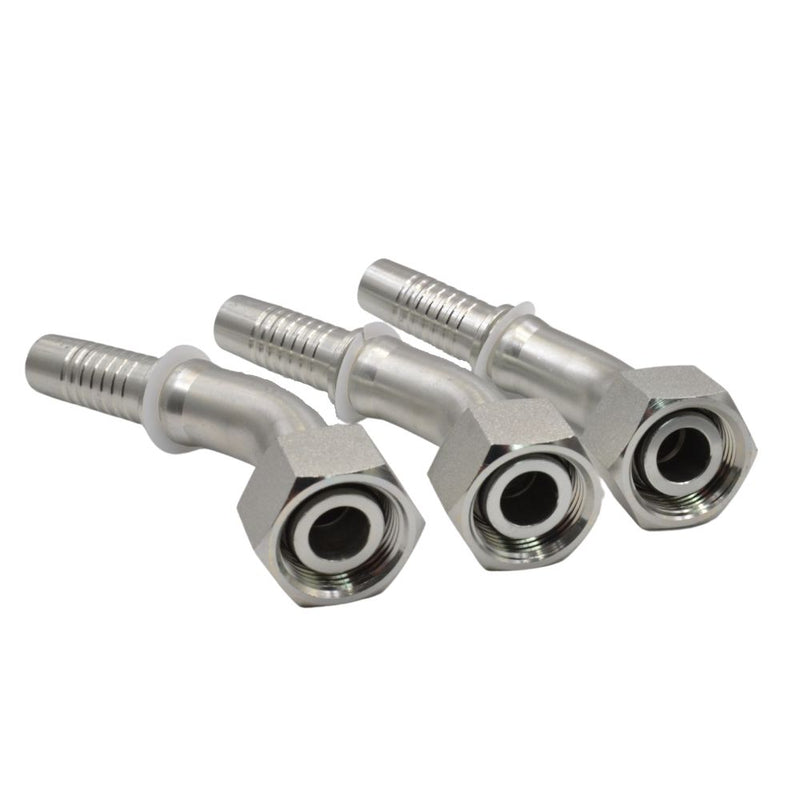

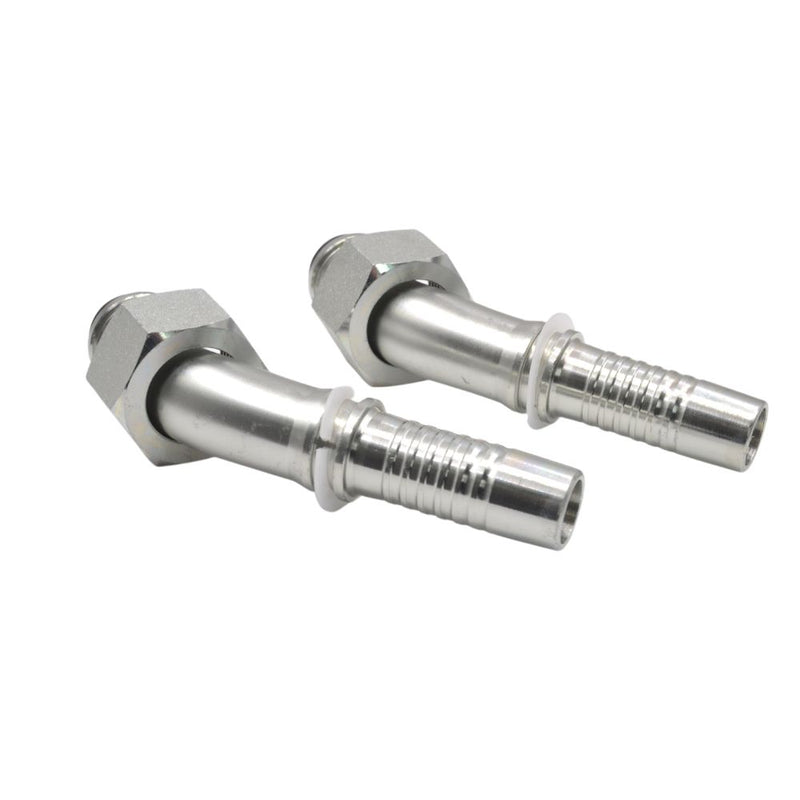

20441 45-degree female 24-degree cone L.T. hydraulic hose fitting has a female metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.
The 20441 metric fittings are commonly used in medium or high-pressure hydraulic fluid systems, and it typically seals using an o-ring or sealing washer.
Feel free to ask if you have any questions about the hydraulic metric flare fittings.
Features and Benefits:
• Leak-free
• Reliable
• Easy to maintain
• Customize
20441
45° METRIC FEMALE 24° CONE O-RING L.T. DIN3865
|
PART NO.
|
E
|
HYDRAULIC HOSE
|
O.D
|
O
|
DIMENSIONS
|
|
DN
|
DASH
|
A
|
C
|
H
|
S2
|
|
20441-12-04
|
M14X1.5
|
6
|
4
|
8
|
O06.5X1.5
|
45
|
2
|
26
|
19
|
|
20441-16-05
|
M16X1.5
|
8
|
5
|
10
|
O08.0X1.5
|
49.5
|
2
|
27.8
|
22
|
|
20441-16-06
|
M16X1.5
|
10
|
6
|
10
|
O08.0X1.5
|
51.3
|
2
|
27.8
|
22
|
|
20441-18-05T
|
M18X1.5
|
8
|
5
|
12
|
O010.0X1.5
|
44.7
|
1.5
|
23.2
|
22
|
|
20441-18-06
|
M18X1.5
|
10
|
6
|
12
|
O010.0X1.5
|
53
|
2.5
|
29
|
24
|
|
20441-22-05T
|
M22X1.5
|
8
|
5
|
15
|
O012.0X2
|
48.3
|
3
|
25
|
27
|
|
20441-22-06T
|
M22X1.5
|
10
|
6
|
15
|
O012.0X2
|
49
|
3
|
25.3
|
27
|
|
20441-22-08
|
M22X1.5
|
12
|
8
|
15
|
O012.0X2
|
66.5
|
2.5
|
34
|
27
|
|
20441-26-08T
|
M26X1.5
|
12
|
8
|
18
|
O015.0X2
|
61
|
2.1
|
28
|
32
|
|
20441-26-10
|
M26X1.5
|
16
|
10
|
18
|
O015.0X2
|
70
|
2.5
|
36
|
32
|
|
20441-26-12
|
M26X1.5
|
20
|
12
|
18
|
O015.0X2
|
86.9
|
2.5
|
39.5
|
32
|
|
20441-30-10T
|
M30X1.5
|
16
|
10
|
22
|
O022.0X2
|
64
|
3.8
|
30
|
36
|
|
20441-20-12
|
M30X1.5
|
20
|
12
|
22
|
O020.0X2
|
84.5
|
4
|
40.5
|
36
|
|
20441-36-12T
|
M36X1.5
|
20
|
12
|
28
|
O028.0X2
|
79.3
|
4.5
|
35.5
|
46
|
|
20441-36-14T
|
M36X2
|
22
|
14
|
28
|
O028.0X2
|
83.7
|
4.5
|
33.3
|
46
|
|
20441-45-20T
|
M45X2
|
32
|
20
|
35
|
O035.0X2
|
101.8
|
4
|
42.4
|
55
|
|
20441-52-20T
|
M52X2
|
32
|
20
|
42
|
O042.0X2
|
102.6
|
4
|
46.6
|
60
|
|
20441-52-24T
|
M52X2
|
40
|
24
|
42
|
O042.0X2
|
113
|
4
|
45.8
|
60
|
