WPR 30411-20-06 Metric Female Multi-Seal L-Series M33x2
14-Day Return Policy
Items can be returned within 14 days from the delivery date.
Conditions:
• Product must be unused
• Original packaging required
• Proof of purchase required
Product Description▼

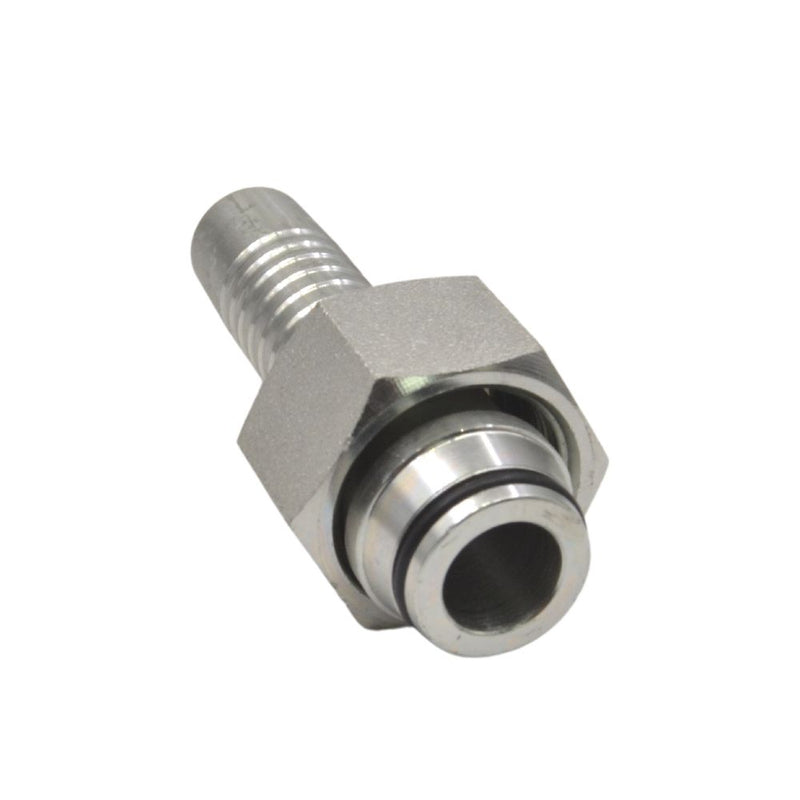

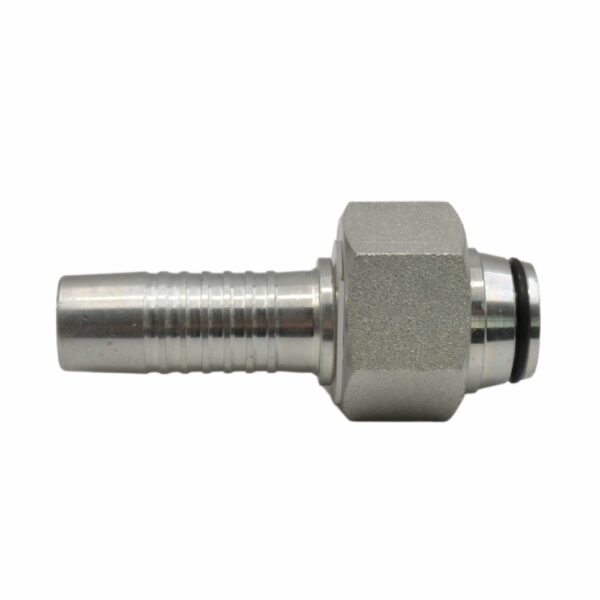

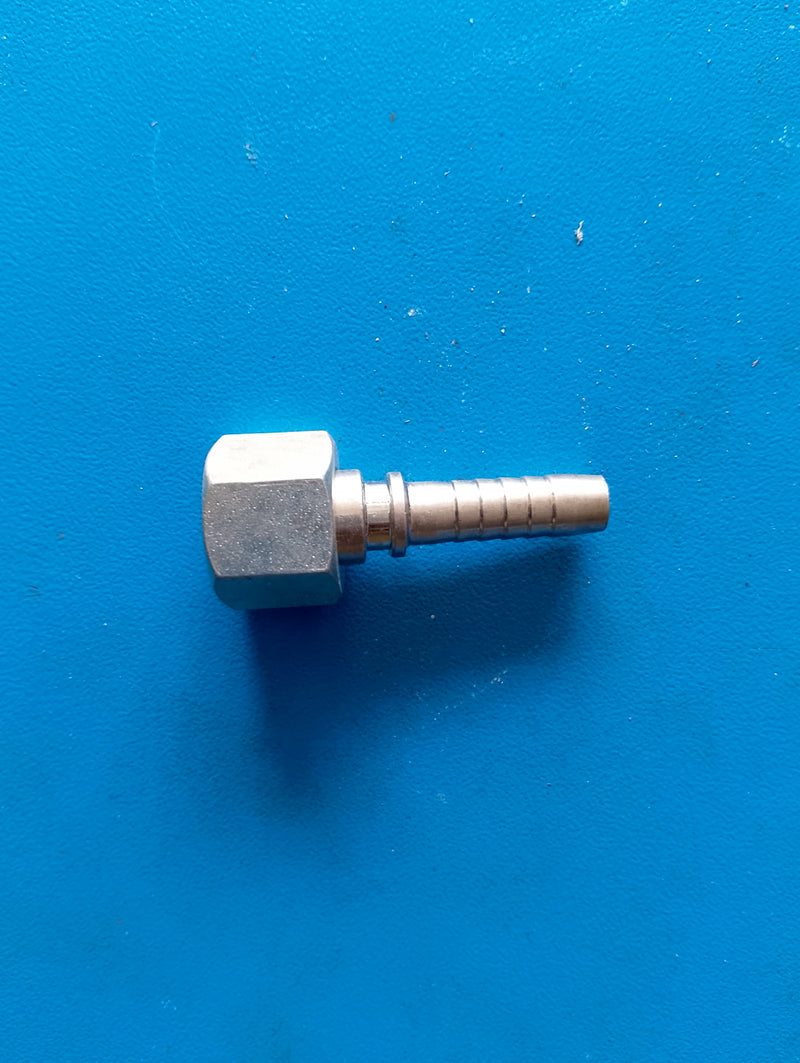

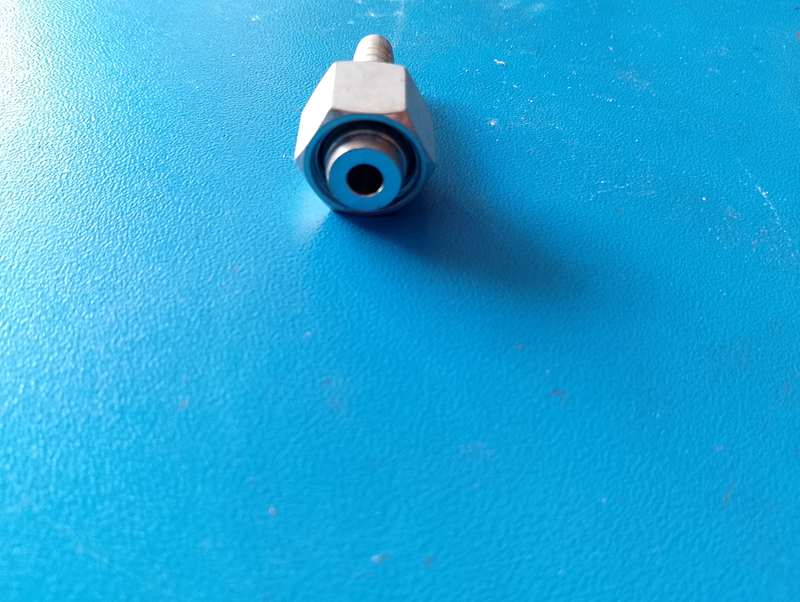

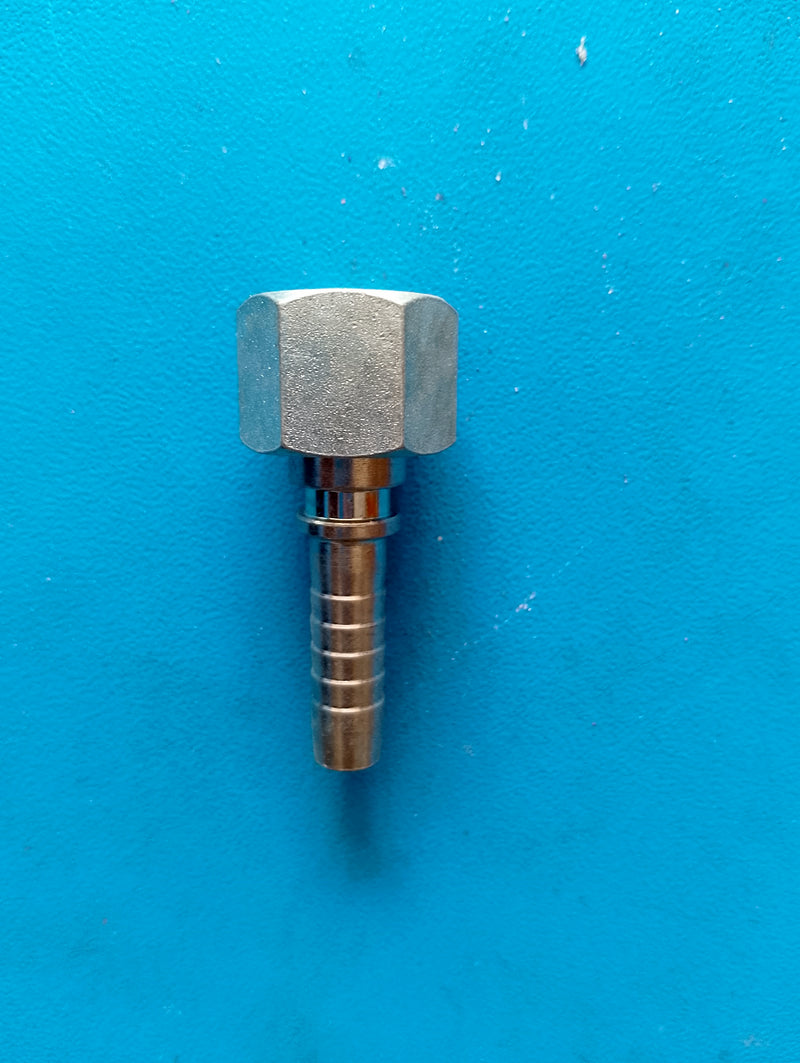

30411-20-06 | WPR, Hose Fitting (011557)
Product Title:
Durable WPR Hose Fitting for Precision Connections - Model 30411-20-06
Description:
The Model 30411-20-06 WPR Hose Fitting embodies precision and durability, offering a robust solution for hydraulic systems requiring reliable, high-pressure connections. Optimized with an M20*1.5 thread for DN 10 hoses (dash size 06), it ensures a secure, leak-proof seal essential for the efficiency and reliability of hydraulic operations. Crafted for the demands of industrial, automotive, and agricultural applications, it guarantees optimal performance in challenging conditions.
Features:
- Precision Engineering: M20*1.5 threading for a perfect, leak-minimizing fit.
- Superior Durability: Made from premium materials to endure high pressures and adverse environments.
- Optimized Fluid Dynamics: Enhances hydraulic system efficiency with designed fluid flow.
- Simple Installation: Easy to integrate into systems, reducing maintenance efforts.
Benefits:
- Enhanced System Performance: Ensures reliable, leak-free operation vital for efficiency and safety.
- Increased Fitting Longevity: Quality construction for reduced replacement frequency.
- Versatile Use: Applicable across various hydraulic system designs for flexible, reliable use.
- Cost-Effective Maintenance: Durable solution that minimizes operational costs.
Specifications:
- Part No.: 30411-20-06
- Thread Size: M20*1.5
- Hose Bore (DN): 10
- Dash Size: 06
- Material: High-grade alloy for strength and corrosion resistance.
- Application: Ideal for high-pressure hydraulic lines in diverse environments.
Metric Fitting
Description:

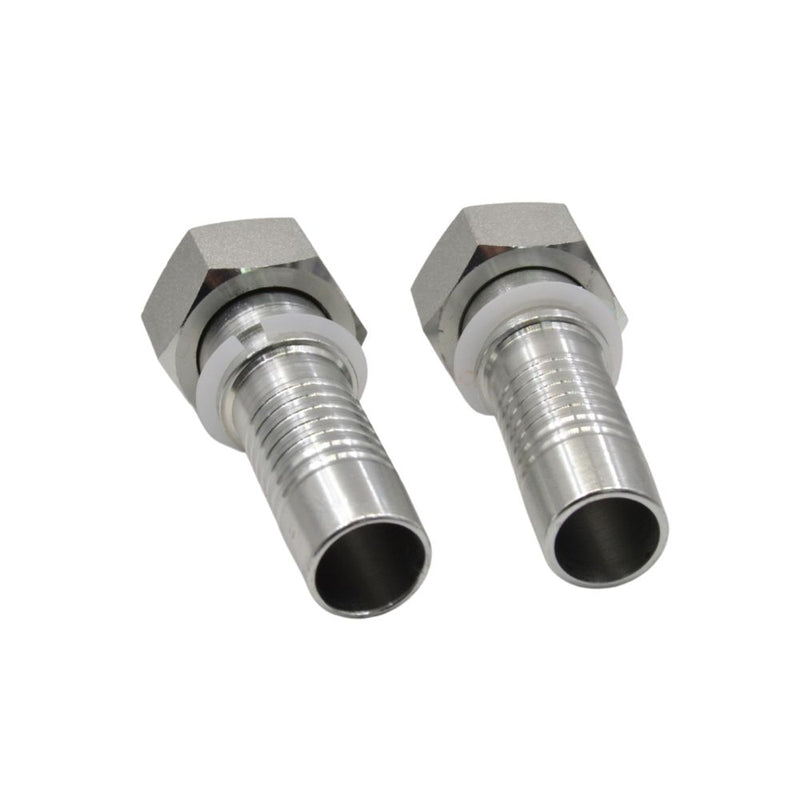

20411 female 24-degree cone L.T. hydraulic hose fitting has a female metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.
The 20411 fittings are commonly used in medium or high-pressure hydraulic fluid systems, and it typically seals using an o-ring or sealing washer.
Feel free to ask if you have any questions about the hydraulic metric flare fitting.
Features and Benefits:
• Leak-free
• Reliable
• Easy to maintain
• Customize
Description
|
PART NO. |
THREAD E |
HOSE BORE |
TUBE O.D. |
O RING |
DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S2 |
||||
|
20411-12-04 |
M12*1.5 |
6 |
04 |
6 |
O04.5*1.5 |
26 |
1 |
17 |
|
20411-14-04 |
M14*1.5 |
6 |
04 |
8 |
O06.5*1.5 |
27.5 |
2 |
19 |
|
20411-14-06 |
M14*1.5 |
10 |
06 |
8 |
O06.5*1.5 |
27.5 |
2 |
19 |
|
20411-16-04 |
M16*1.5 |
6 |
04 |
10 |
O08.0*1.5 |
28 |
2 |
22 |
|
20411-16-05 |
M16*1.5 |
8 |
05 |
10 |
O08.0*1.5 |
28 |
2 |
22 |
|
20411-16-06 |
M16*1.5 |
10 |
06 |
10 |
O08.0*1.5 |
28 |
2 |
22 |
|
20411-18-05T |
M18*1.5 |
8 |
05 |
12 |
O10.0*2.0 |
27.5 |
1.8 |
22 |
|
20411-18-06 |
M18*1.5 |
10 |
06 |
12 |
O10.0*2.0 |
29 |
2.5 |
24 |
|
20411-18-08 |
M18*1.5 |
12 |
08 |
12 |
O10.0*2.0 |
29.5 |
2.5 |
24 |
|
20411-22-05T |
M22*1.5 |
8 |
05 |
15 |
O12.0*2.0 |
29.5 |
2.1 |
27 |
|
20411-22-06T |
M22*1.5 |
10 |
06 |
15 |
O12.0*2.0 |
29 |
2.5 |
27 |
|
20411-22-08 |
M22*1.5 |
12 |
08 |
15 |
O12.0*2.0 |
32 |
2.5 |
27 |
|
20411-26-10 |
M26*1.5 |
16 |
10 |
18 |
O15.0*2.0 |
35 |
2.5 |
32 |
|
20411-26-12 |
M26*1.5 |
20 |
12 |
18 |
O15.0*2.0 |
35 |
2.5 |
32 |
|
20411-27-10T |
M27*1.5 |
16 |
10 |
18 |
O15.0*2.0 |
28 |
2.5 |
32 |
|
20411-27-12 |
M27*1.5 |
20 |
12 |
18 |
O15.0*2.0 |
35 |
2.5 |
32 |
|
20411-30-10T |
M30*2 |
16 |
10 |
22 |
O20.0*2.0 |
35 |
4 |
36 |
|
20411-30-12 |
M30*2 |
20 |
12 |
22 |
O20.0*2.0 |
38 |
4 |
36 |
|
20411-36-12T |
M36*2 |
20 |
12 |
28 |
O26.0*2.0 |
35 |
4 |
41 |
|
20411-36-14T |
M36*2 |
22 |
14 |
28 |
O26.0*2.0 |
36 |
4 |
41 |
|
20411-45-16T |
M45*2 |
25 |
16 |
35 |
O32.0*2.5 |
41 |
5 |
55 |
|
20411-45-20T |
M45*2 |
32 |
20 |
35 |
O32.0*2.5 |
42 |
5 |
55 |
|
20411-52-20T |
M52*2 |
32 |
20 |
42 |
O38.0*2.5 |
44 |
5.5 |
60 |
|
20411-52-24T |
M52*2 |
40 |
24 |
42 |
O38.0*2.5 |
44 |
5.5 |
60 |
