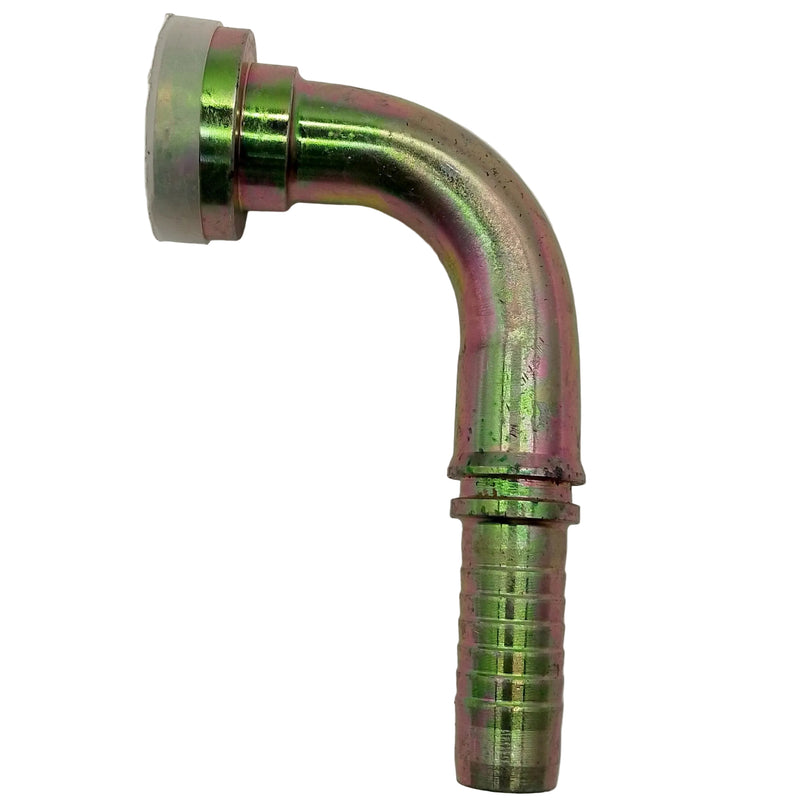

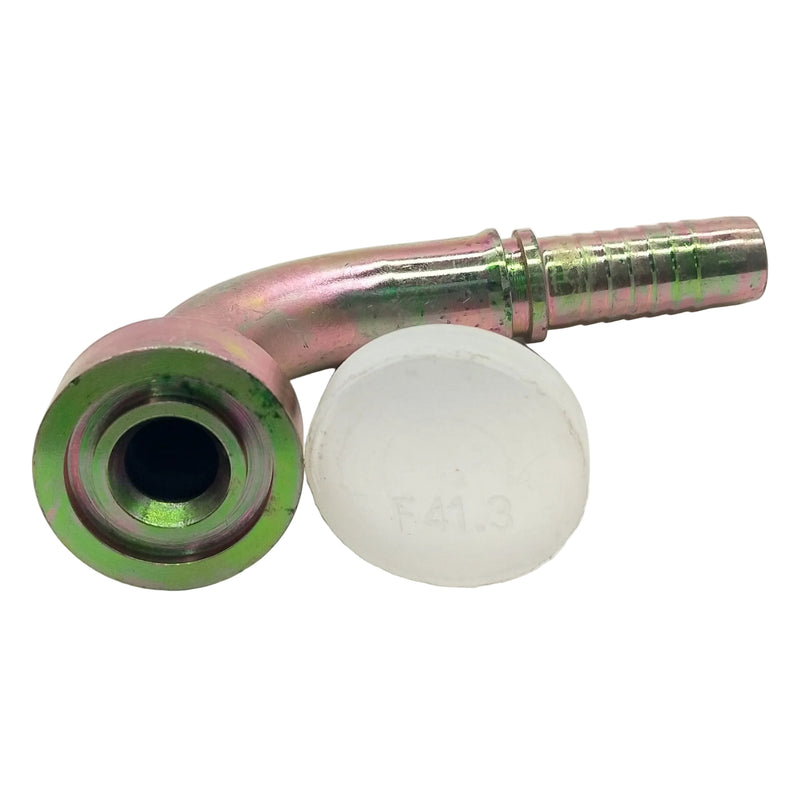

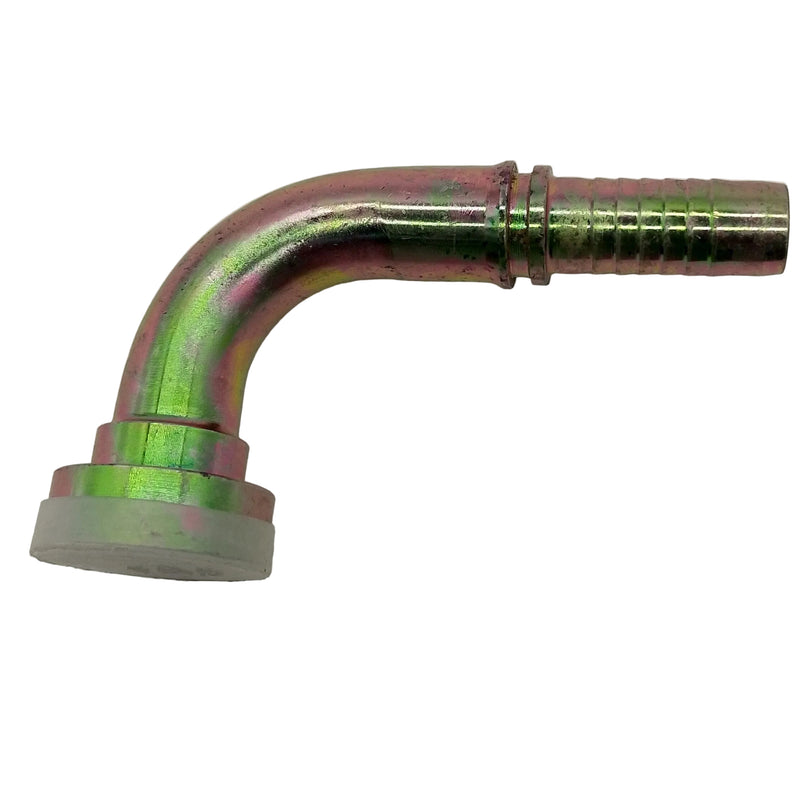

WPR Hose Fitting 87992-16-16 H-130 90° Hydraulic Flange
14-Day Return Policy
Items can be returned within 14 days from the delivery date.
Conditions:
• Product must be unused
• Original packaging required
• Proof of purchase required
Product Description▼
Specifications:
-
Hose Barb ID: 16 mm
-
Flange Size: 1″ SAE hydraulic flange (H-130 pattern, e.g., Code 61 or 62)
-
Orientation: 90° elbow design
-
Material: Carbon steel, zinc-plated (stainless steel available upon request)
-
Working Pressure: Up to 3000 psi (≈207 bar) for Code 61 or up to 6000 psi (≈413 bar) for Code 62
-
Finish: Corrosion-resistant zinc coating
Features:
-
90° hydraulic flange simplifies hose routing in compact installations
-
SAE-standard flange ensures high-pressure sealing and compatibility
-
Precision-machined surfaces for secure sealing under pressure
-
Zinc-plated surface resists environmental corrosion
-
Suitable for braided hydraulic hoses and fluid assemblies
Benefits:
-
Enables secure, leak-resistant, high-pressure hydraulic connections
-
Reduces installation effort by accommodating tight routing spaces
-
Offers long-lasting durability in rugged environments
-
OEM-compatible flange for easy system integration
-
Ideal for construction, agriculture, and industrial applications
Location:
Hydraulic hose assemblies, equipment manifolds, heavy-duty machinery
Position:
90° elbow flange – allows efficient hose direction changes in tight spaces
Compatible Applications:
| Application Type | Description |
|---|---|
| Construction Equipment | Loaders, excavators with tight hose routings |
| Agricultural Machinery | Tractors, combines with high-pressure lines |
| Industrial Hydraulics | Power units, fluid manifolds with constrained layouts |
| Mobile Hydraulic Systems | Cranes, dump trucks needing elbow fittings |
Confirm flange bolt pattern (Code 61 vs. Code 62), hose barb diameter, and pressure rating before installation.
