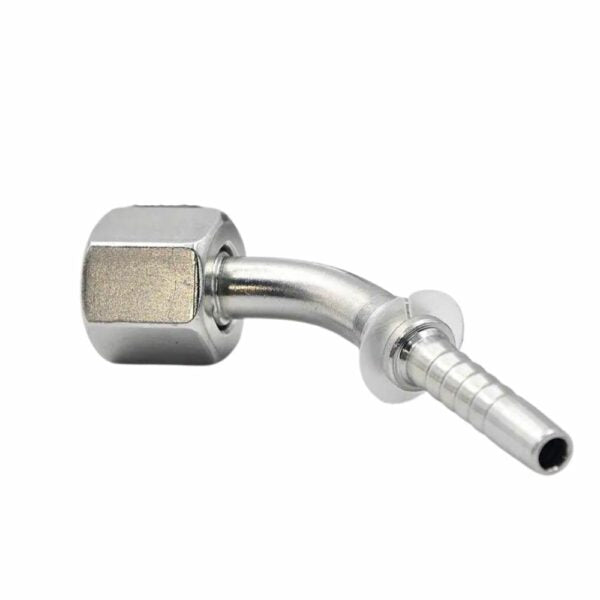

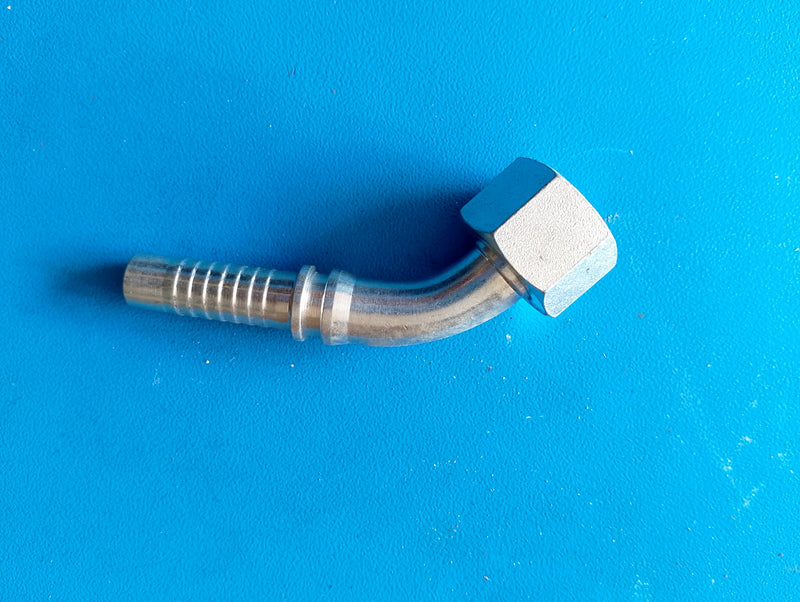

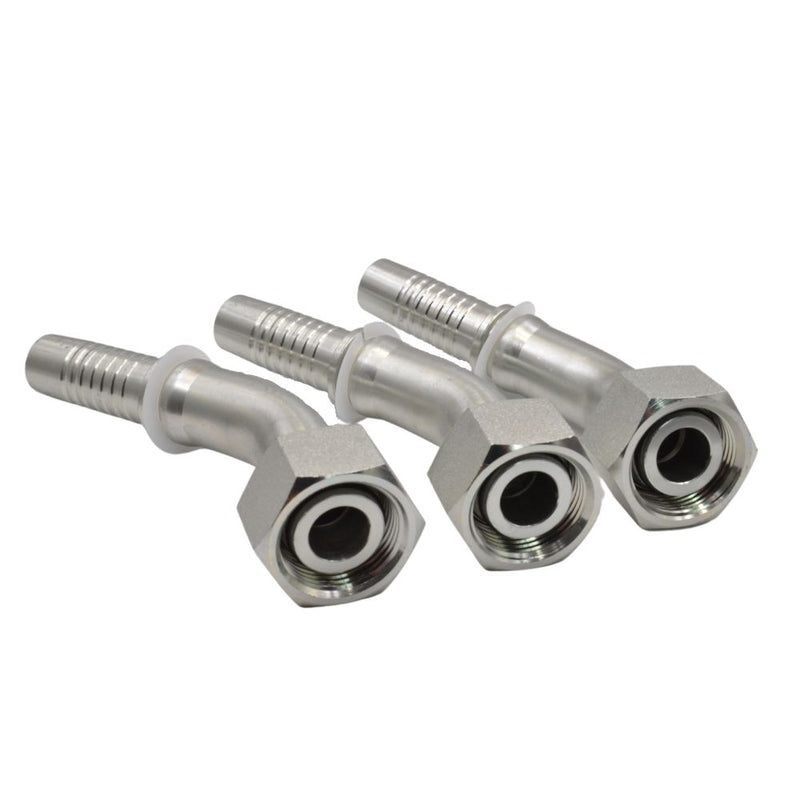

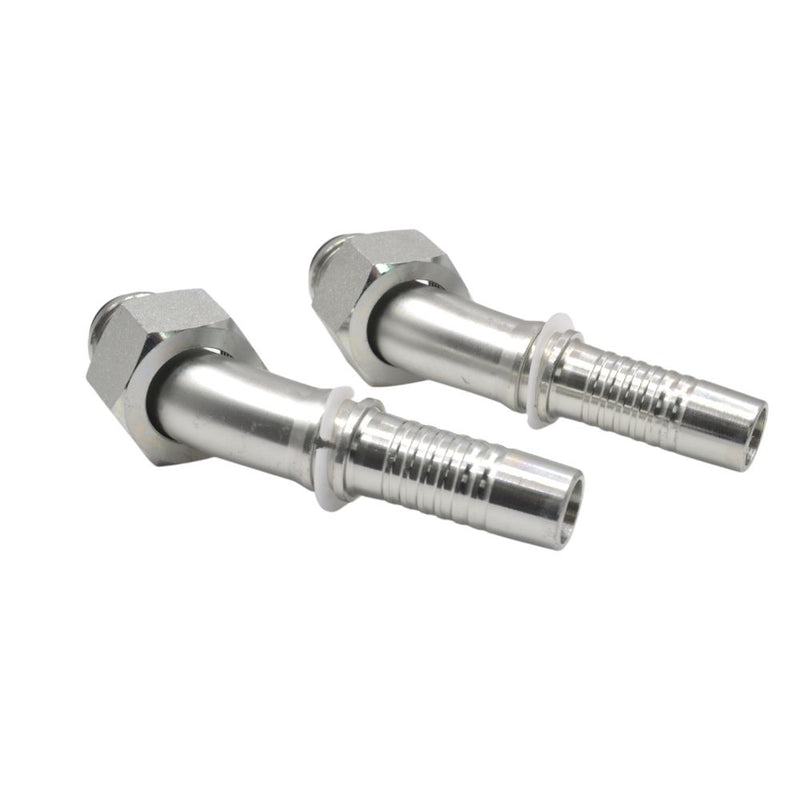

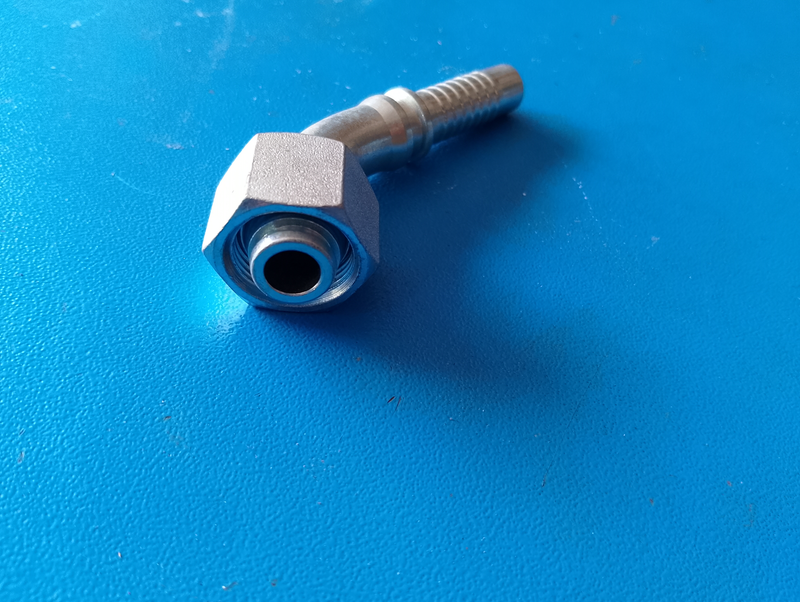

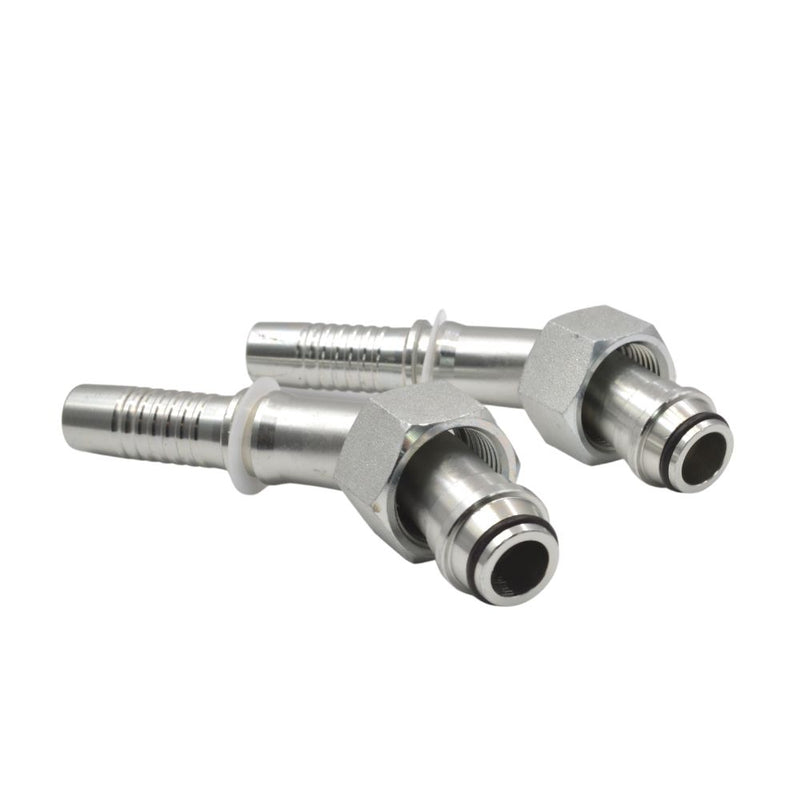

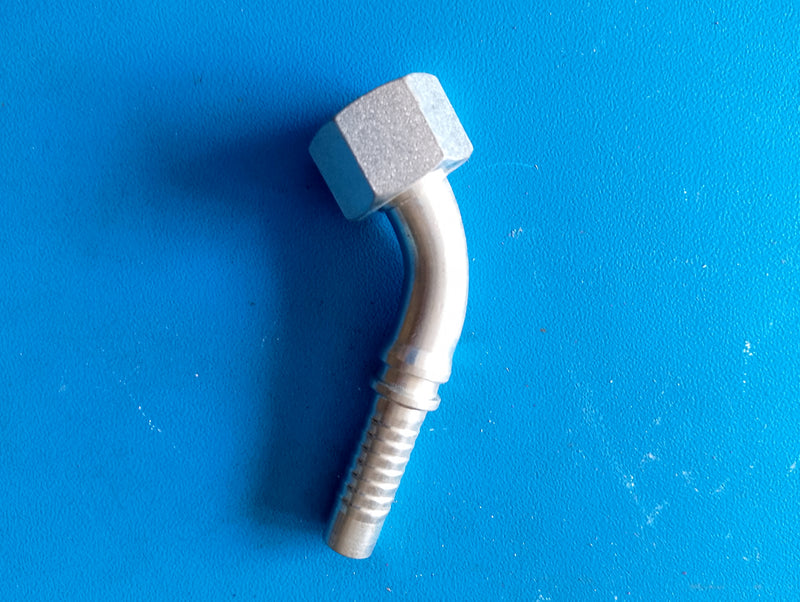

Premium WPR Hose Fitting for Hydraulic Systems - Model 20441-22-08
Model 20441-22-08 stands as a benchmark in hydraulic hose fitting technology, crafted for unparalleled reliability and performance. It features an M22*1.5 thread, catering to hoses with a nominal diameter (DN) of 12 and a dash size of 08. Its comprehensive design ensures a steadfast, leak-proof connection vital for efficient and safe hydraulic operations.
Key Features:
-
Precision M22*1.5 Thread: Guarantees a flawless, leak-proof connection with compatible hydraulic hoses.
-
Durable Construction: Fabricated from superior materials to endure high pressures and adverse conditions.
-
Streamlined Design: Compact dimensions for straightforward installation in constrained spaces, enhancing system design flexibility.
-
Enhanced Compatibility: Seamlessly integrates with various hydraulic systems, underscoring its versatility.
Benefits:
-
Improved System Integrity: Secures connections, mitigating leak risks and maintaining optimal hydraulic pressure.
-
Increased Durability: The use of premium materials extends the fitting's lifespan, curtailing maintenance and replacement expenses.
-
Ease of Installation: Features like the precise hex size and simple design expedite installation processes.
-
Versatile Use: Adaptable for diverse hydraulic applications across industrial, automotive, and agricultural fields.
Specifications:
-
Part Number: 20441-22-08
-
Thread Size: M22*1.5
-
Hose Bore (DN): 12
-
Dash Size: 08
-
Dimensions: Length - 15mm; Outer Diameter - O12.0*2.0mm; Total Length - 68.1mm; Hex Size - 33.2mm
Additional Information:
The 20441 model, a 45-degree female metric fitting with a 24-degree cone L.T. seal, is pivotal in establishing robust seals between hoses and tubes, primarily in medium to high-pressure hydraulic fluid systems. It's recognized for its leak-proof, reliable, and easy-to-maintain characteristics, offering customization options to fit specific requirements.
Feel free to inquire for more details about hydraulic metric flare fittings or for any specific questions related to the 20441 fittings.
Metric Hose Fitting
Description:
20441 45-degree female 24-degree cone L.T. hydraulic hose fitting has a female metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.
The 20441 metric fittings are commonly used in medium or high-pressure hydraulic fluid systems, and it typically seals using an o-ring or sealing washer.
Feel free to ask if you have any questions about the hydraulic metric flare fittings.
Features and Benefits:
• Leak-free
• Reliable
• Easy to maintain
• Customize
20441
45° METRIC FEMALE 24° CONE O-RING L.T. DIN3865
|
PART NO.
|
E
|
HYDRAULIC HOSE
|
O.D
|
O
|
DIMENSIONS
|
|
DN
|
DASH
|
A
|
C
|
H
|
S2
|
|
20441-12-04
|
M14X1.5
|
6
|
4
|
8
|
O06.5X1.5
|
45
|
2
|
26
|
19
|
|
20441-16-05
|
M16X1.5
|
8
|
5
|
10
|
O08.0X1.5
|
49.5
|
2
|
27.8
|
22
|
|
20441-16-06
|
M16X1.5
|
10
|
6
|
10
|
O08.0X1.5
|
51.3
|
2
|
27.8
|
22
|
|
20441-18-05T
|
M18X1.5
|
8
|
5
|
12
|
O010.0X1.5
|
44.7
|
1.5
|
23.2
|
22
|
|
20441-18-06
|
M18X1.5
|
10
|
6
|
12
|
O010.0X1.5
|
53
|
2.5
|
29
|
24
|
|
20441-22-05T
|
M22X1.5
|
8
|
5
|
15
|
O012.0X2
|
48.3
|
3
|
25
|
27
|
|
20441-22-06T
|
M22X1.5
|
10
|
6
|
15
|
O012.0X2
|
49
|
3
|
25.3
|
27
|
|
20441-22-08
|
M22X1.5
|
12
|
8
|
15
|
O012.0X2
|
66.5
|
2.5
|
34
|
27
|
|
20441-26-08T
|
M26X1.5
|
12
|
8
|
18
|
O015.0X2
|
61
|
2.1
|
28
|
32
|
|
20441-26-10
|
M26X1.5
|
16
|
10
|
18
|
O015.0X2
|
70
|
2.5
|
36
|
32
|
|
20441-26-12
|
M26X1.5
|
20
|
12
|
18
|
O015.0X2
|
86.9
|
2.5
|
39.5
|
32
|
|
20441-30-10T
|
M30X1.5
|
16
|
10
|
22
|
O022.0X2
|
64
|
3.8
|
30
|
36
|
|
20441-20-12
|
M30X1.5
|
20
|
12
|
22
|
O020.0X2
|
84.5
|
4
|
40.5
|
36
|
|
20441-36-12T
|
M36X1.5
|
20
|
12
|
28
|
O028.0X2
|
79.3
|
4.5
|
35.5
|
46
|
|
20441-36-14T
|
M36X2
|
22
|
14
|
28
|
O028.0X2
|
83.7
|
4.5
|
33.3
|
46
|
|
20441-45-20T
|
M45X2
|
32
|
20
|
35
|
O035.0X2
|
101.8
|
4
|
42.4
|
55
|
|
20441-52-20T
|
M52X2
|
32
|
20
|
42
|
O042.0X2
|
102.6
|
4
|
46.6
|
60
|
|
20441-52-24T
|
M52X2
|
40
|
24
|
42
|
O042.0X2
|
113
|
4
|
45.8
|
60
|
