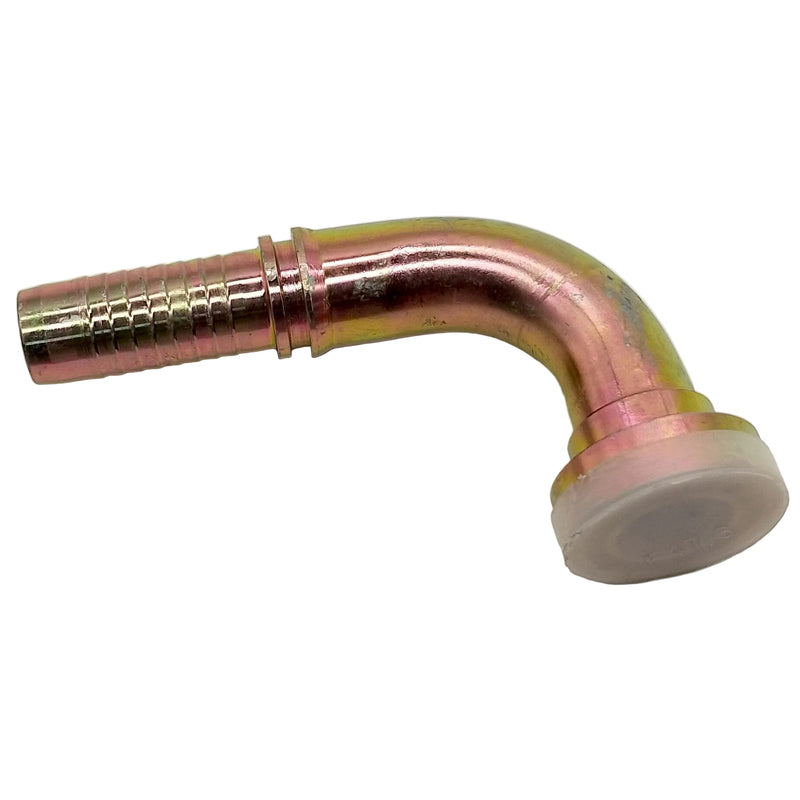

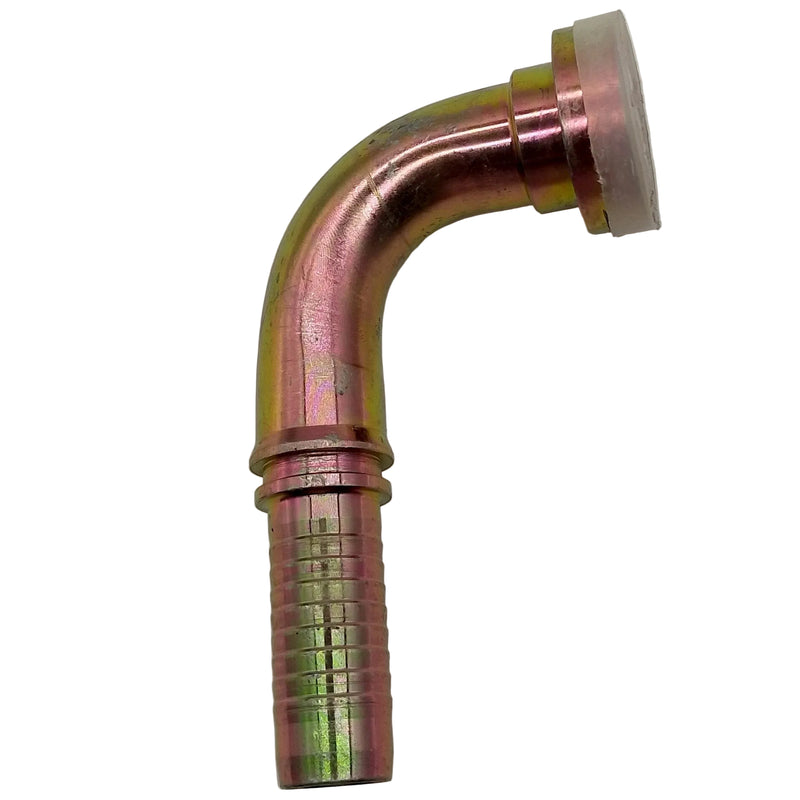

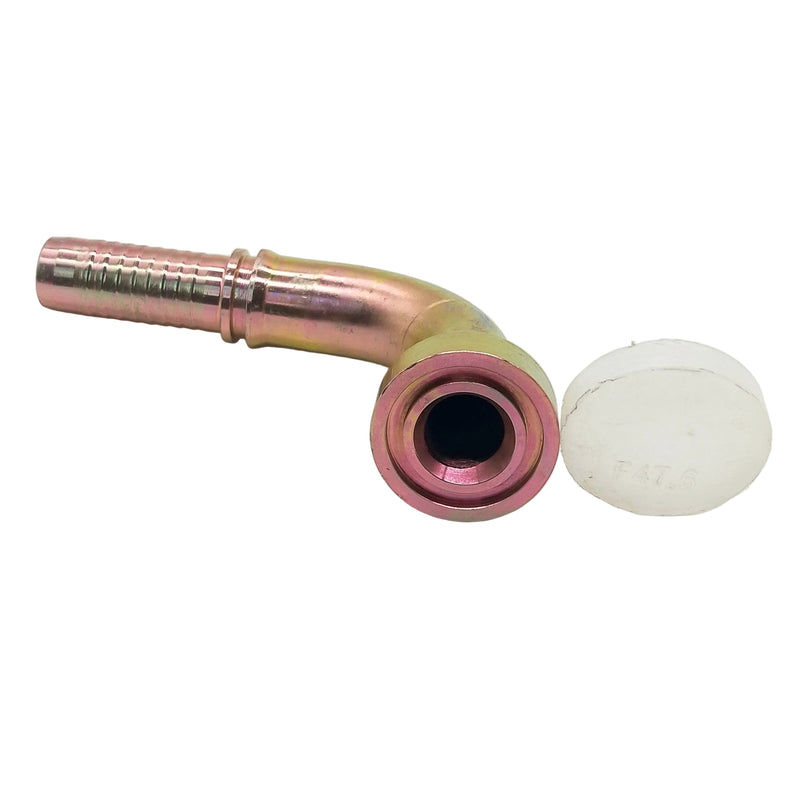

Name: WPR 87992 SAE Code 61 Flange 90° Elbow 1" (S-Heavy)
Brand: Win Atuo Parts
SKU: 20239-WPR-HOS-MM
Price: 22860.0 MMK
Availability: InStock

WPR 87992 SAE Code 61 Flange 90° Elbow 1" (S-Heavy)

Best Seller 100+ sold

WPR 87992 SAE Code 61 Flange 90° Elbow 1" (S-Heavy)

Part Number / SKU: 20239-WPR-HOS-MM

Brand / Vendor: Win Atuo Parts | Type: Hose Fitting

SAE Code 61 flange 90° elbow hose fitting, S-Series heavy duty. SAE J518 / ISO 6162-1 standard with O-Ring seal. | SAE Code 61 ဖလင်း ၉၀°ကွေး ပိုက်ဆက်၊ S-စီးရီးအလေးစား။ SAE J518 / ISO 6162-1 စံနှုန်း O-Ring ပိတ်ဆို့မှု။

K22,860.00 - K22,860.00

K22,860.00

K22,860.00 - K22,860.00

K22,860.00

Availability:

In stock

14-Day Return Policy

Items can be returned within 14 days from the delivery date.

Conditions:
• Product must be unused
• Original packaging required
• Proof of purchase required

Key item features

Myanmar name: SAE ဖလင်း Code 61 ၉၀° (အလေး)
English name: Hose Fitting
Brand: WPR
Sku: 20239-WPR-HOS-MM
Part number: 87992-16-16
Part type: Hydraulic Fitting
Product type: Hydraulic Fitting

Specs

Part number / SKU	20239-WPR-HOS-MM
Brand	Win Atuo Parts
Product Type	Hose Fitting

How you will get this item

Nationwide delivery, usually 2–4 days depending on location. Free shipping over K500,000

Free pickup at Win Store locations — usually ready in 2 hours.

Fast home delivery within Yangon after confirmation.

🏬Sold and shipped by Win Store

↩️Return policy Details

About this item

Product details⌄

The WPR 87992-16-16 Hydraulic SAE Flange Fitting is manufactured to SAE hydraulic standards for reliable performance in high-pressure applications. This fitting is designed to connect hydraulic hoses to pumps, valves, cylinders, and manifolds, ensuring a strong and stable seal under demanding operating conditions.

Precision-machined from durable alloy steel, the fitting provides excellent resistance to pressure, vibration, and wear. It is suitable for construction machinery, agricultural equipment, industrial hydraulic systems, and professional hydraulic hose assembly workshops.

Specifications

Item	Details
Brand	WPR
Part Number	87992-16-16
Product Type	SAE Flange Hydraulic Fitting
Hose Size	-16 (16 mm inner diameter)
Connection Style	Flange
Standard	SAE J516
Orientation	90° Elbow (confirm with actual product)
Material	Alloy Steel
Surface Finish	Zinc Plated (or as specified)
Pressure Rating	Suitable for high-pressure hydraulic systems

Applications

Commonly used in:

Excavators and construction machinery
Loaders and industrial vehicles
Agricultural hydraulic systems
Hydraulic pumps, valves, and cylinders
Hydraulic hose assembly workshops

Always confirm hose size, flange type, and pressure rating before installation.

Cross Reference / Compatibility

SAE Flange Fitting 87992-16-16
Compatible with hydraulic hose assemblies using -16 flange connections

Package Contents

1 × WPR Hydraulic SAE Flange Fitting 87992-16-16

Specifications⌄

Part number / SKU	20239-WPR-HOS-MM
Brand	Win Atuo Parts
Product Type	Hose Fitting
Old SKU	WS-1255-879-MM
Weight	0.18 kg
Availability	✅ In Stock

Warranty⌄

Return Policy
• Items can be returned within 14 days from the delivery date.
• Products must be unused and in original packaging.
• Proof of purchase (order confirmation or invoice) is required.

Non-Returnable Items
• Used or installed products
• Items damaged due to improper handling
• Products modified after purchase

Warranty
• Warranty coverage may vary depending on the manufacturer or supplier.
• If a product includes manufacturer warranty, claims must follow supplier terms.

See full delivery and return policy in our Help Center

📊 Technical Data နည်းပညာ အချက်အလက်များ Click sections to expand

✨ Key Features | အဓိက အင်္ဂါရပ်များ ▼

Myanmar name: SAE ဖလင်း Code 61 ၉၀° (အလေး)
English name: Hose Fitting
Brand: WPR
Sku: 20239-WPR-HOS-MM
Part number: 87992-16-16
Part type: Hydraulic Fitting
Product type: Hydraulic Fitting
Short description: SAE Code 61 flange 90° elbow hose fitting, S-Series heavy duty. SAE J518 / ISO 6162-1 standard with O-Ring seal. | SAE Code 61 ဖလင်း ၉၀°ကွေး ပိုက်ဆက်၊ S-စီးရီးအလေးစား။ SAE J518 / ISO 6162-1 စံနှုန်း O-Ring ပိတ်ဆို့မှု။
Specifications: {"size"=>"1\"", "standards"=>"SAE J518 / ISO 6162-1", "thread_type"=>"SAE Code 61 Flange (S)", "connection_type"=>"Split Flange", "angle"=>"90°", "thread_size"=>"SAE Flange -16", "seal_type"=>"O-Ring (NBR)", "weight_class"=>"S (Heavy)", "fitting_series"=>"87992", "pressure_ratings"=>{"working_psi"=>"3000", "working_bar"=>"210", "burst_psi"=>"12000", "burst_bar"=>"840"}, "temperature_range"=>"-40°C to +100°C"}
Materials: {"primary"=>"Carbon Steel", "surface_finish"=>"Zinc Plated"}
Material details: Body: Carbon Steel - heavy duty | ကိုယ်ထည်: ကာဗွန်သံမဏိ - အလေးစား Surface: Zinc Plated | မျက်နှာပြင်: ဇင့်လိမ်း Seal: O-Ring NBR | ပိတ်ဆို့: O-Ring NBR

🔩 Part Identification | အစိတ်အပိုင်းနံပါတ် ▼

Description	Detail
Brand \| အမှတ်တံဆိပ်	WPR
Product Type \| ကုန်ပစ္စည်းအမျိုးအစား	Hydraulic Fitting

🚗 Vehicle Compatibility | ကားပုံစံ ကိုက်ညီမှု 151 ▼

Make	Model	Year	Engine
—	—	—	—

🏷️ OEM Part Numbers | OEM အစိတ်အပိုင်းနံပါတ် 11 ▼

Part Number	Brand	Type
—	—	—

🔄 Cross Reference Parts | ညီမျှမှုနံပါတ်များ 114 ▼

These parts are cross-compatible — same specification, different brands. | ဤနံပါတ်များသည် ညီမျှသောအစိတ်အပိုင်းများ — ကုမ္ပဏီကွာသော်လည်း Spec တူညီသည်။

Part Number	Brand	Type
—	—	—

🔧 Sub Assembly | အပိုဆောင်အစိတ်အပိုင်းများ 49 ▼

Component	Qty	Note
—	1	—

📋 Product Specifications | ကုန်ပစ္စည်းသတ်မှတ်ချက်▼

Specification	Value

📖 Installation Guide | တပ်ဆင်နည်းလမ်းညွှန် ▼

1. Clean all connection surfaces thoroughly before assembly | တပ်ဆင်မှုမတိုင်မီ ချိတ်ဆက်မျက်နှာပြင်အားလုံးကို သေချာသန့်ရှင်းပါ
2. Apply appropriate thread sealant or ensure O-ring/seal is properly seated | သင့်လျော်သော ကြိုးအံအလုံပိတ်ဆေး သို့မဟုတ် O-ring/seal ကို မှန်ကန်စွာထိုင်ကြောင်း သေချာပါ
3. Hand-tighten first, then use correct wrench size to torque to specification | လက်ဖြင့်ဥးစွာတင်းပြီး မှန်ကန်သော wrench အရွယ်အစားဖြင့် သတ်မှတ်ချက်အတိုင်း torque ပေးပါ
4. Check for leaks under system pressure before full operation | အပြည့်အဝလည်ပတ်မှုမတိုင်မီ စနစ်ဖိအားအောက်တွင် ယိုစိမ့်မှုစစ်ဆေးပါ
5. Do not exceed rated working pressure | သတ်မှတ်ထားသော လုပ်ငန်းဖိအားကို ကျော်လွန်မပါနှင့်

ℹ️ Product Details | ကုန်ပစ္စည်းအသေးစိတ် ▼

Description	Detail
Material \| ကုန်ကြမ်း	Body: Carbon Steel - heavy duty \| ကိုယ်ထည်: ကာဗွန်သံမဏိ - အလေးစား Surface: Zinc Plated \| မျက်နှာပြင်: ဇင့်လိမ်း Seal: O-Ring NBR \| ပိတ်ဆို့: O-Ring NBR
Country of Origin \| ထုတ်လုပ်သည့်နိုင်ငံ	China

🚚 Shipping & Delivery | ပို့ဆောင်မှု အချက်အလက် ▼

🕐

Delivery Time | ပို့ဆောင်ချိန်

Standard Delivery, 2–4 business days | ပုံမှန်ပို့ဆောင်မှု ၂ ရက်မှ ၄ ရက်အတွင်း

❓ Can't find your vehicle or part? Contact our team — ကူညီဖို့ ဆက်သွယ်ပါ
