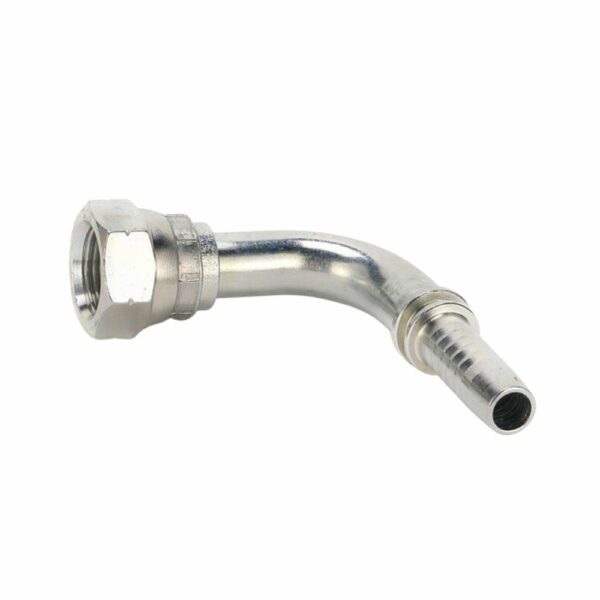

29691 Series: JIS Hydraulic Hose Fittings

Overview

The 29691 series represents the pinnacle of precision in hydraulic hose fittings. Crafted to provide unmatched leak-tight connections, these JIS female hose fittings feature a 90-degree elbow and an internal 60-degree cone seat, making them the go-to choice for a wide range of hydraulic systems. With a focus on durability and reliability, these fittings are designed for use with braided hoses, ensuring optimal system performance.

Key Features

• Leak-Proof Performance: Engineered for a secure fit to prevent leaks, ensuring system integrity and reliability.
• High-Quality Materials: Constructed from superior materials to withstand extreme pressures and environments.
• Precision Design: G3/4" * 14 thread design guarantees a perfect seal and compatibility, enhancing system efficiency.
• Ease of Installation: A simplified installation process allows for a quick and secure connection without specialized tools.
• Versatile Use: Compatible with a broad array of hose systems, ideal for diverse hydraulic applications.

Benefits

• Efficiency: Reduces maintenance time and costs by preventing leaks.
• Durability: Withstands high pressures, providing long-lasting performance.
• Flexibility: Designed to fit multiple systems, making it suitable for various industrial and automotive applications.

Technical Specifications

• Part Number: 29691-12-12
• Thread: G3/4" * 14
• Hose Bore (DN): 20
• Dash: 12
• Dimensions: A = 65.5mm, C = 13.5mm, H = 69mm, S1 & S2 = 32mm

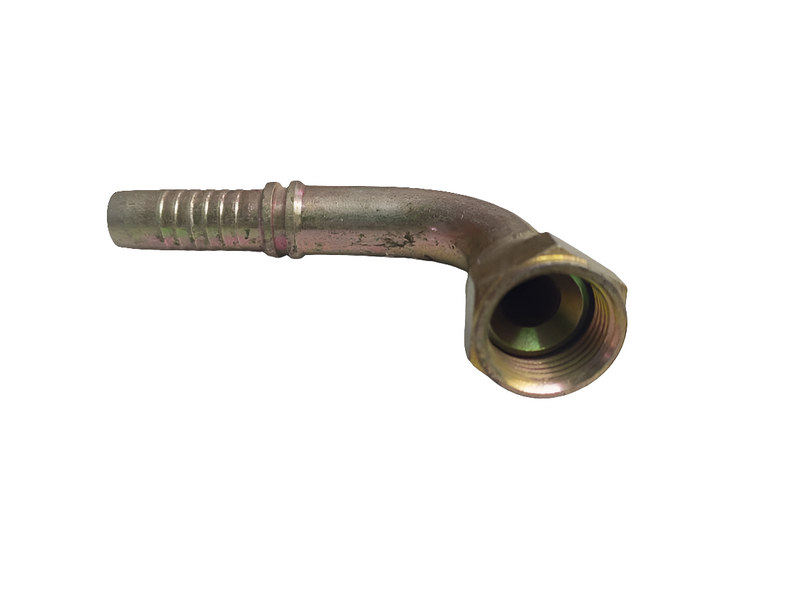

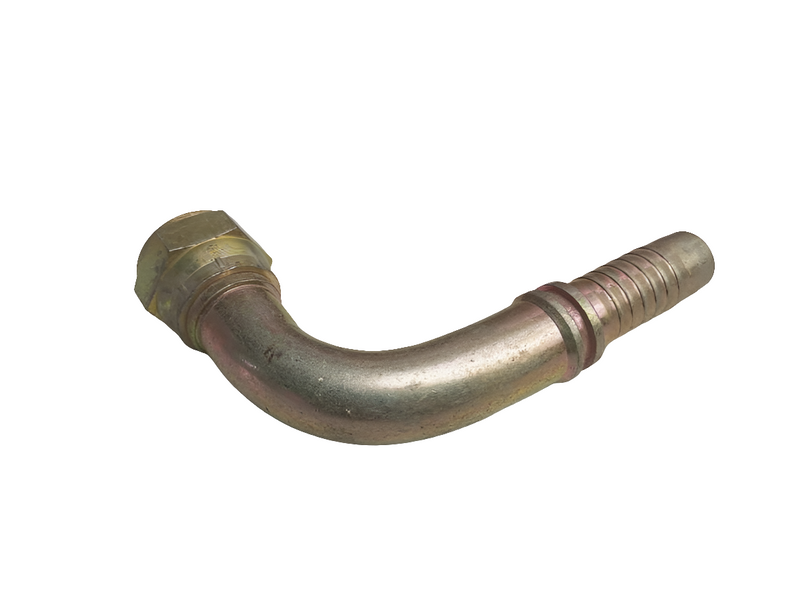

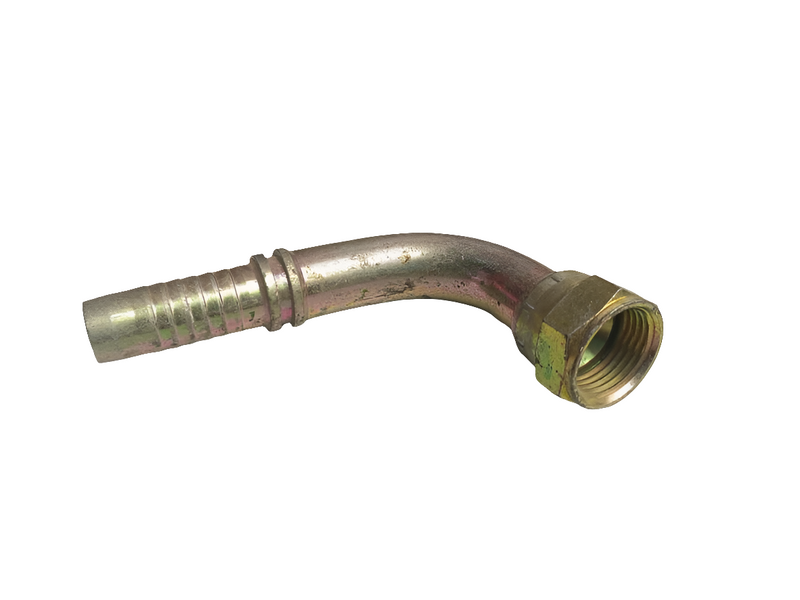

29692 Series: Spiral Hose Fittings

Overview

Building upon the foundation laid by the 29691 series, the 29692 series hose fittings are specifically engineered for spiral hoses. These fittings maintain the integrity and performance of hydraulic systems under high-pressure conditions. Like their counterparts, they are designed for reliability and ease of use, ensuring your hydraulic systems operate smoothly and efficiently.

Key Features

• Spiral Hose Compatibility: Tailored to provide a leak-free connection for spiral hoses, ensuring high-pressure system integrity.
• Durability Under Pressure: Capable of withstanding the demands of high-pressure hydraulic systems.
• Premium Material Construction: Made from high-grade materials to offer excellent durability and reliability.
• Effortless Installation: Engineered for easy installation, reducing system downtime and maintenance costs.
• Customizable Options: Available in various sizes and configurations to meet specific application requirements.

Benefits

• Secure Connections: Offers robust, leak-tight connections for high-pressure applications.
• Long-Term Reliability: Designed to last, even in tough conditions, reducing the need for frequent replacements.
• Versatility: Suitable for a wide range of hydraulic systems, adding flexibility to your operations.

Please Note: For specific part numbers and technical details tailored to spiral hose applications, refer to the 29692-XX-XX series.

HYDRAULIC 29691 90°JIS GAS FEMALE 60°CONE SEAT (JIS B8363)

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses. hose fitting series number is 29692-XX-XX.
