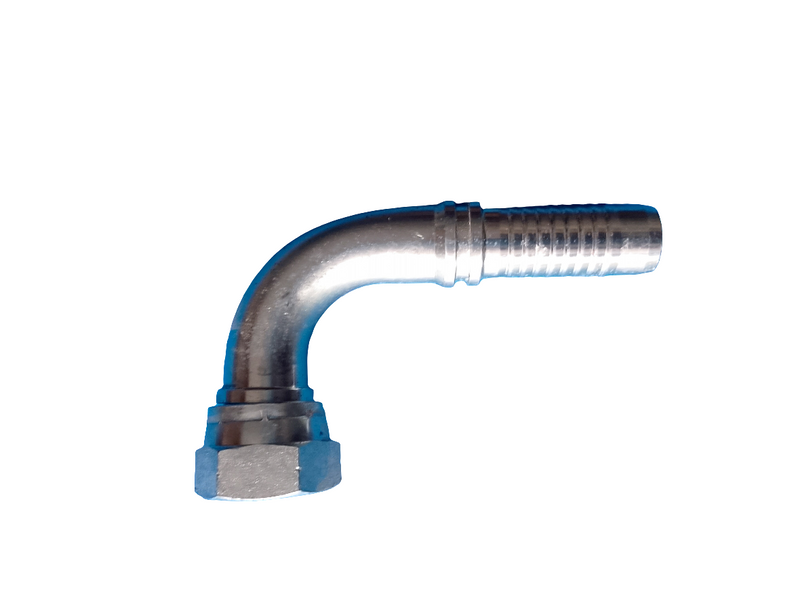

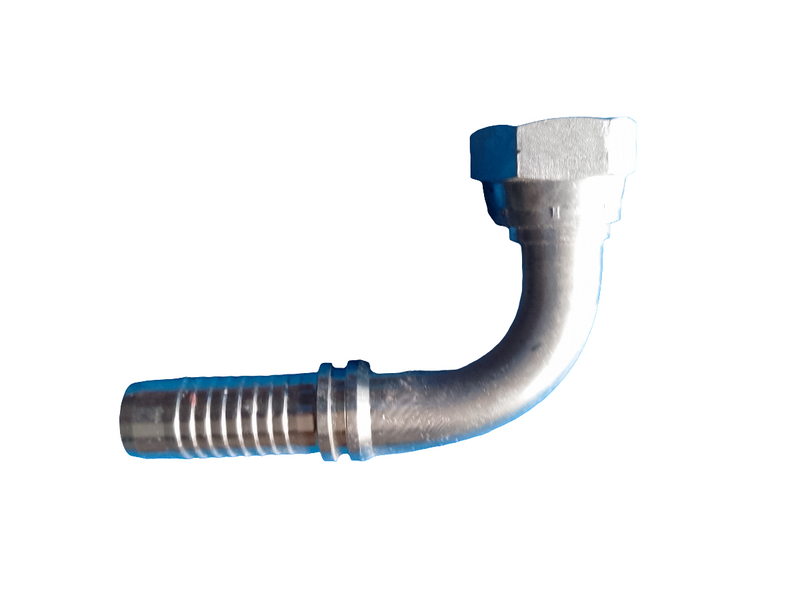

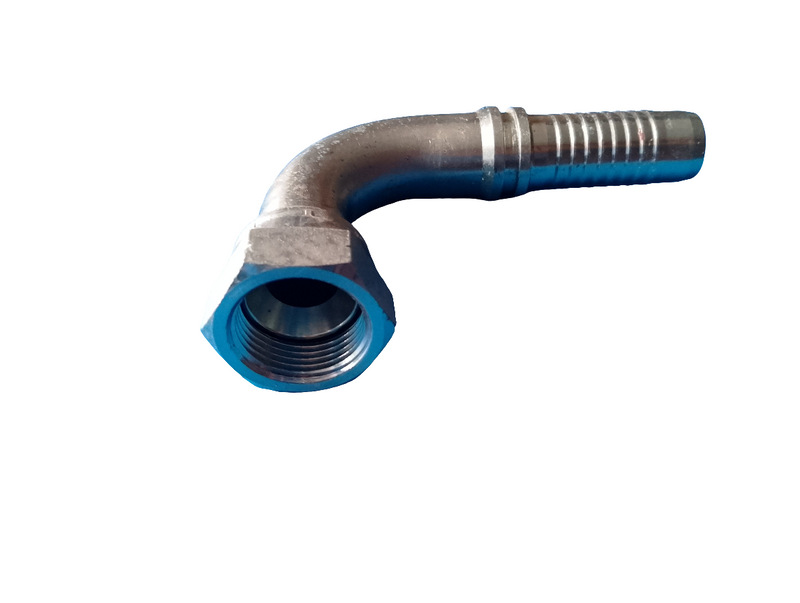

WPR 29692-16-16 JIC 37° Female 90° Elbow 1"
14-Day Return Policy
Items can be returned within 14 days from the delivery date.
Conditions:
• Product must be unused
• Original packaging required
• Proof of purchase required
Product Description▼
High-Efficiency WPR Hose Fitting - Model 29692-16-16
Description
The 29692-16-16 forms a part of our premium range of female JIS hose fittings, characterized by an internal 60-degree cone seat and a 90-degree elbow for robust, leak-free connections. This fitting is crafted for compatibility with both hydraulic and pneumatic systems, providing a reliable solution for a variety of applications. Designed specifically for spiral hoses, this model guarantees optimal performance and durability.
Features and Benefits
- Leak-Tight Assurance: Precision-engineered to ensure a leak-tight seal, enhancing system reliability.
- Unmatched Reliability: Built from industrial-grade materials to withstand extreme pressures and conditions.
- Free Samples Available: Explore our quality commitment with no upfront cost.
- Customization Options: Tailor-made solutions to fit your specific hydraulic system requirements.
- High-Strength Material: Constructed from the finest materials for maximum durability and performance in challenging environments.
- Precision Engineered Thread: Features a G1"X11 thread design for a superior, leak-proof connection that enhances system performance.
- Universal Compatibility: Versatile design ensures a perfect fit for a broad range of hydraulic applications.
- Effortless Installation: Easy to install without the need for specialized tools, ensuring a secure fit.
Benefits
- Enhanced System Efficiency: Offers a secure fit to prevent leaks, thereby optimizing the efficiency of hydraulic systems.
- Durability: Robust construction ensures long-lasting performance, offering significant value over its lifespan.
- Versatile Application: Suitable for a wide array of applications, from industrial machinery to agricultural systems.
Technical Specifications
- Part Number: 29692-16-16
- Thread E: G1"X11
- Hose Bore (DN): 25
- Dash: 16
- Dimensions: A = 76.7mm, C = 16mm, H = 76.5mm, S1 = 41mm, S2 = 41mm
Note
- Braided Hoses: This fitting is designed for spiral hoses. For applications involving braided hoses, please refer to our 29691 series.
- Spiral Hoses: For spiral hose applications, the fitting series number is 29692-XX-XX, indicating specialized compatibility.
HYDRAULIC 29691 90°JIS GAS FEMALE 60°CONE SEAT (JIS B8363)
| PART NO. | THREAD E |  HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 29691-04-04 | G1/4"X19 | 6 | 04 | 30 | 8 | 38 | 19 | 19 |
| 29691-04-05 | G1/4"X19 | 8 | 05 | 33 | 8 | 41 | 19 | 19 |
| 29691-06-06 | G3/8"X19 | 10 | 06 | 35.3 | g | 45.8 | 22 | 22 |
| 29691-08-08 | G1/2-X14 | 12 | 08 | 41 | 12 | 53 | 27 | 27 |
| 29691-10-10 | G5/8"X14 | 16 | 10 | 56.5 | 11.5 | 61 | 30 | 30 |
| 29691-12-12 | G3/4"X14 | 20 | 12 | 65.5 | 13.5 | 69 | 32 | 32 |
| 29691-16-16 | G1"X11 | 25 | 16 | 76.7 | 16 | 76.5 | 41 | 41 |
| 29691-20-20W | G1.1/4"X11 | 32 | 20 | 91.5 | 18.5 | 92.5 | 50 | 50 |
| 29691-24-24W | G1.1/2"X11 | 40 | 24 | 109.4 | 19 | 110.5 | 55 | 55 |
| 29691-32-32W | G2"X11 | 50 | 32 | 131.8 | 23 | 133.8 | 70 | 70 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 29692-XX-XX.
