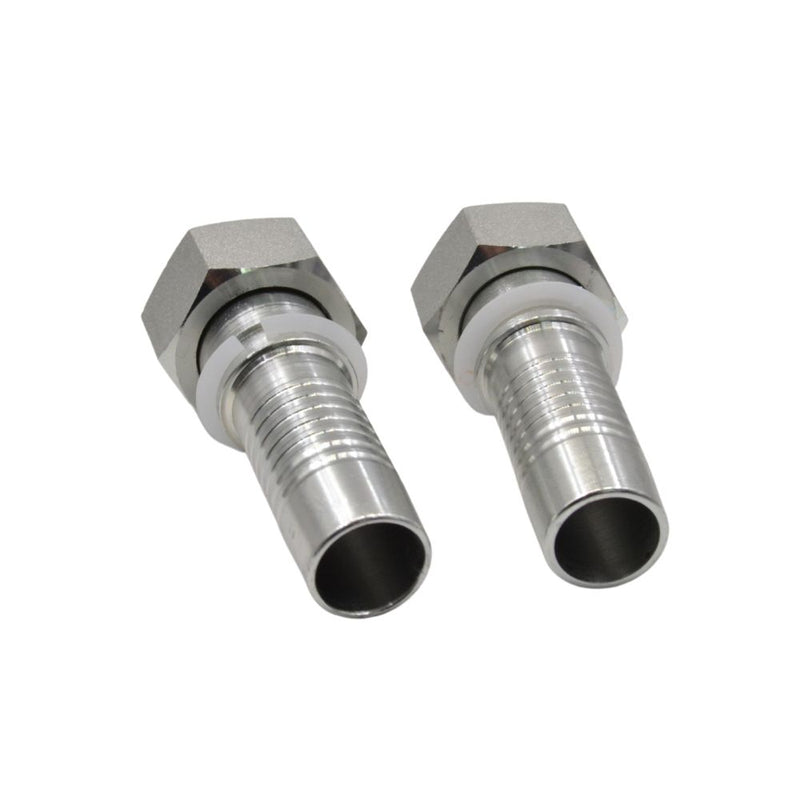

20411-14-04 | WPR, Hose Fitting (010734)
Currently out of stock. Please submit a request to our support team to check availability.
Contact Support14-Day Return Policy
Items can be returned within 14 days from the delivery date.
Conditions:
• Product must be unused
• Original packaging required
• Proof of purchase required
20411-14-04 | WPR, Hose Fitting (010734)
Product Title:
Compact Efficiency WPR Hose Fitting - Model 20411-14-04
Description:
The Model 20411-14-04 WPR Hose Fitting is a testament to innovative engineering, designed to ensure seamless integration and unparalleled reliability within hydraulic systems. This meticulously crafted fitting boasts an M141.5 thread, making it ideally suited for DN 6 hoses (dash size 04) and guaranteeing a secure, leak-proof connection that is crucial for sustaining optimal hydraulic pressure. Its compact design, featuring an 8mm length and an outer diameter of O06.51.5, is specifically tailored for installations within constrained spaces, thereby ensuring superior performance without compromise. The fitting’s robust construction not only promises enduring durability but also offers exceptional resilience, rendering it an exemplary choice for a multitude of applications ranging from industrial and automotive to agricultural.
Features:
- Precision M14*1.5 Threading: Guarantees a precise, leak-proof fit, critical for the integrity of the system.
- Durable Material: Utilizes high-grade materials to endure the demands of challenging environments.
- Efficient Design: Its compact dimensions facilitate effortless installation in limited spaces, optimizing system configuration.
- Ease of Installation: The simplified installation process enables swift and efficient system maintenance, minimizing downtime.
Benefits:
- Enhanced System Performance: Ensures a steadfast connection that elevates hydraulic system efficiency and safety.
- Long Service Life: Durable construction materials extend the fitting's operational lifespan, diminishing the necessity for frequent maintenance.
- Versatile Application: Its adaptability across various hydraulic systems provides both flexibility and reliability in application.
- Cost-Effective Maintenance: Designed for convenience, its robust construction and ease of installation contribute to reduced operational expenses.
Specifications:
- Part No.: 20411-14-04
- Thread Size: M14*1.5
- Hose Bore (DN): 6
- Dash Size: 04
- Length: 8mm
- Outer Diameter: O06.5*1.5mm
- Design Height: 27.5mm
- Wall Thickness: 2mm
- Hex Size: 19mm
- Material: Crafted from a superior alloy for enhanced strength and resistance to corrosion.
- Application: Ideally suited for the securement of high-pressure hydraulic lines across a diverse array of environments.
Embrace the Model 20411-14-04 for its compact efficiency and robust performance, a fitting that redefines reliability and durability in hydraulic system connections.
Metric Fitting
Description:
20411 female 24-degree cone L.T. hydraulic hose fitting has a female metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.
The 20411 fittings are commonly used in medium or high-pressure hydraulic fluid systems, and it typically seals using an o-ring or sealing washer.
Feel free to ask if you have any questions about the hydraulic metric flare fitting.
Features and Benefits:
• Leak-free
• Reliable
• Easy to maintain
• Customize
Description
|
PART NO. |
THREAD E |
HOSE BORE |
TUBE O.D. |
O RING |
DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S2 |
||||
|
20411-12-04 |
M12*1.5 |
6 |
04 |
6 |
O04.5*1.5 |
26 |
1 |
17 |
|
20411-14-04 |
M14*1.5 |
6 |
04 |
8 |
O06.5*1.5 |
27.5 |
2 |
19 |
|
20411-14-06 |
M14*1.5 |
10 |
06 |
8 |
O06.5*1.5 |
27.5 |
2 |
19 |
|
20411-16-04 |
M16*1.5 |
6 |
04 |
10 |
O08.0*1.5 |
28 |
2 |
22 |
|
20411-16-05 |
M16*1.5 |
8 |
05 |
10 |
O08.0*1.5 |
28 |
2 |
22 |
|
20411-16-06 |
M16*1.5 |
10 |
06 |
10 |
O08.0*1.5 |
28 |
2 |
22 |
|
20411-18-05T |
M18*1.5 |
8 |
05 |
12 |
O10.0*2.0 |
27.5 |
1.8 |
22 |
|
20411-18-06 |
M18*1.5 |
10 |
06 |
12 |
O10.0*2.0 |
29 |
2.5 |
24 |
|
20411-18-08 |
M18*1.5 |
12 |
08 |
12 |
O10.0*2.0 |
29.5 |
2.5 |
24 |
|
20411-22-05T |
M22*1.5 |
8 |
05 |
15 |
O12.0*2.0 |
29.5 |
2.1 |
27 |
|
20411-22-06T |
M22*1.5 |
10 |
06 |
15 |
O12.0*2.0 |
29 |
2.5 |
27 |
|
20411-22-08 |
M22*1.5 |
12 |
08 |
15 |
O12.0*2.0 |
32 |
2.5 |
27 |
|
20411-26-10 |
M26*1.5 |
16 |
10 |
18 |
O15.0*2.0 |
35 |
2.5 |
32 |
|
20411-26-12 |
M26*1.5 |
20 |
12 |
18 |
O15.0*2.0 |
35 |
2.5 |
32 |
|
20411-27-10T |
M27*1.5 |
16 |
10 |
18 |
O15.0*2.0 |
28 |
2.5 |
32 |
|
20411-27-12 |
M27*1.5 |
20 |
12 |
18 |
O15.0*2.0 |
35 |
2.5 |
32 |
|
20411-30-10T |
M30*2 |
16 |
10 |
22 |
O20.0*2.0 |
35 |
4 |
36 |
|
20411-30-12 |
M30*2 |
20 |
12 |
22 |
O20.0*2.0 |
38 |
4 |
36 |
|
20411-36-12T |
M36*2 |
20 |
12 |
28 |
O26.0*2.0 |
35 |
4 |
41 |
|
20411-36-14T |
M36*2 |
22 |
14 |
28 |
O26.0*2.0 |
36 |
4 |
41 |
|
20411-45-16T |
M45*2 |
25 |
16 |
35 |
O32.0*2.5 |
41 |
5 |
55 |
|
20411-45-20T |
M45*2 |
32 |
20 |
35 |
O32.0*2.5 |
42 |
5 |
55 |
|
20411-52-20T |
M52*2 |
32 |
20 |
42 |
O38.0*2.5 |
44 |
5.5 |
60 |
|
20411-52-24T |
M52*2 |
40 |
24 |
42 |
O38.0*2.5 |
44 |
5.5 |
60 |
